1059000
ActiveRittal

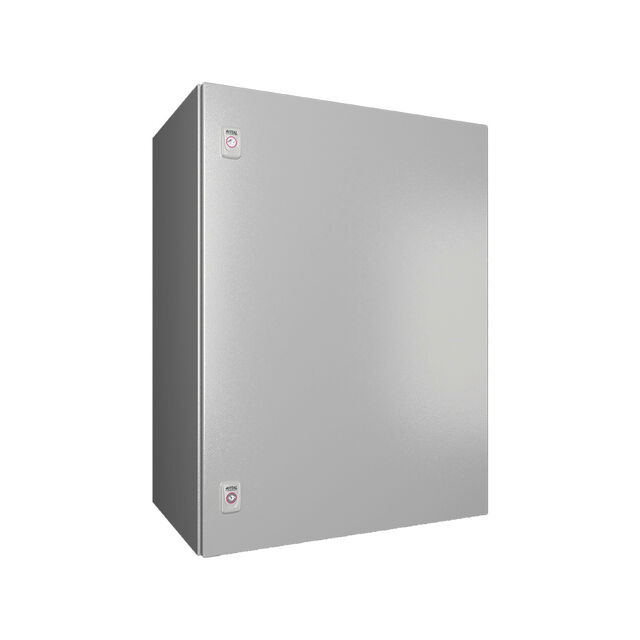

AX COMPACT ENCLOSURE, WHD: 600X8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1059000
ActiveRittal
AX COMPACT ENCLOSURE, WHD: 600X8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1059000 |
|---|---|
| Area (L x W) | 744 in² |
| Area (L x W) | 4800 cm² |
| Color | Light Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height [z] | 400 mm |
| Height [z] | 15.748 in |
| Material | Metal, Steel |
| Ratings | NEMA 4, IP66, NEMA 3R, NEMA 1, NEMA 12 |
| Size / Dimension [x] | 800 mm |
| Size / Dimension [x] | 31.496 in |
| Size / Dimension [y] | 600 mm |
| Size / Dimension [y] | 23.622 " |
| Thickness | 0.059 in |
| Thickness | 1.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 670.17 | |
| Bulk | 1 | $ 374.78 | ||
Description
General part information
1059000
Enclosure Metal, Steel Light Gray Hinged Door 31.496" L x 23.622" W (800.00mm x 600.00mm) X 15.748" (400.00mm)
