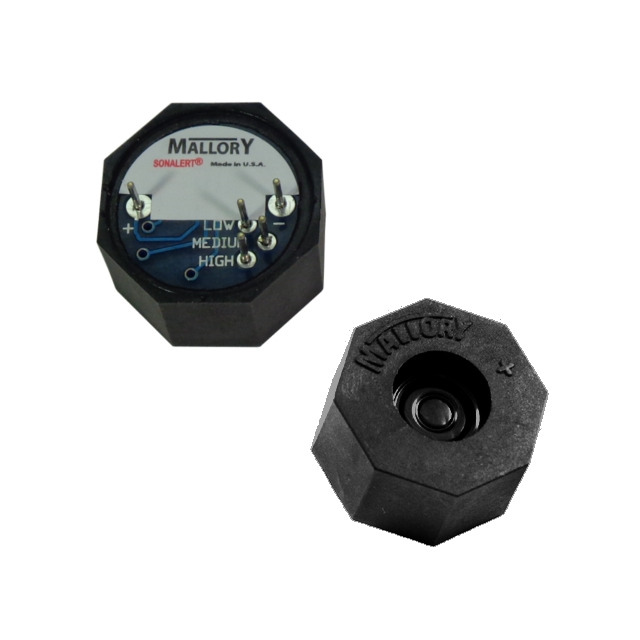

MSS5VLMMP
ActiveMallory Sonalert Products Inc.
BUZZER MAGN 5V 23X23MM TH
Deep-Dive with AI
Search across all available documentation for this part.
MSS5VLMMP
ActiveMallory Sonalert Products Inc.
BUZZER MAGN 5V 23X23MM TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSS5VLMMP |
|---|---|
| Approval Agency | UL, cUL |
| Current - Supply [Max] | 225 mA |
| Current - Supply [Min] | 20 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Duration | Variable |
| Frequency | 2.075 kHz |
| Height - Seated (Max) [Max] | 13.7 mm |
| Height - Seated (Max) [Max] [z] | 0.539 " |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Mode | Pin Selectable |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -30 ░C |
| Port Location | Top |
| Ratings | Medical |
| Size / Dimension [x] | 23 mm |
| Size / Dimension [x] | 0.906 in |
| Size / Dimension [y] | 23 mm |
| Size / Dimension [y] | 0.906 in |
| Sound Pressure Level (SPL) | 85 dB |
| Technology | Magnetic |
| Termination | PC Pins |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 5.5 V |
| Voltage Range [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.58 | |
Description
General part information
MSS5VLMMP
Buzzers Indicator, Internally Driven Magnetic 5 V 20 ~ 225mA 2.075kHz 85dB @ 5V, 10cm Through Hole PC Pins
Documents
Technical documentation and resources
No documents available
