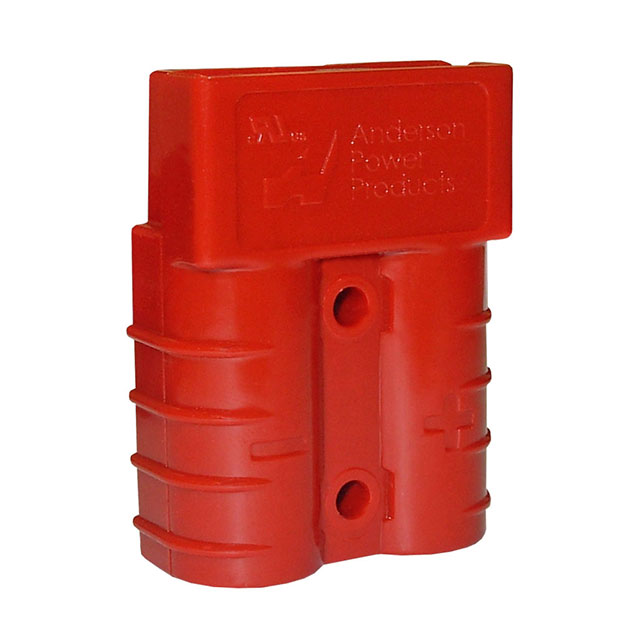

992G1
ActiveAnderson Power Products, Inc.
CONN HSG 2POS RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
992G1
ActiveAnderson Power Products, Inc.
CONN HSG 2POS RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 992G1 |
|---|---|
| Color | Red |
| Connector Type | Non-Gendered |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Fastening Type | Spring Retention |
| Material - Insulation | Polycarbonate |
| Material - Insulation | PC |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Stacking Direction | Side to Side |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.35 | |
| 10 | $ 5.63 | |||
| 25 | $ 5.08 | |||
| 50 | $ 4.71 | |||
| 100 | $ 4.37 | |||
| 300 | $ 3.90 | |||
| 500 | $ 3.70 | |||
| 1000 | $ 3.46 | |||
| 2500 | $ 3.17 | |||
Description
General part information
992G1
2 Position Blade Type Power Housing Connector Non-Gendered Red
Documents
Technical documentation and resources
