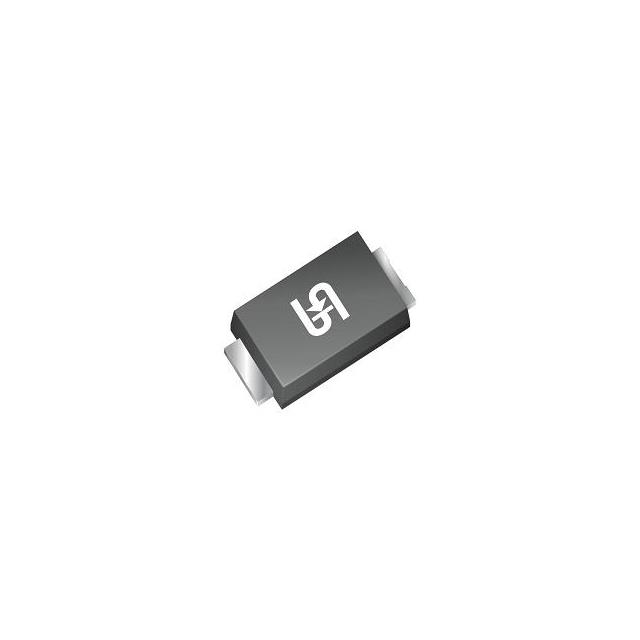

TSD2JAL
ActiveTaiwan Semiconductor Corporation
2A, 400V, STANDARD RECOVERY RECT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSD2JAL
ActiveTaiwan Semiconductor Corporation
2A, 400V, STANDARD RECOVERY RECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSD2JAL |
|---|---|
| Capacitance @ Vr, F | 15 pF |
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage @ Vr | 1 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | SMA Flat Leads, DO-221AC |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | Thin SMA |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| 5000 | $ 0.08 | |||
| Digi-Reel® | 1 | $ 0.49 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.17 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.10 | |||
| 2000 | $ 0.09 | |||
| 5000 | $ 0.08 | |||
| Tape & Reel (TR) | 14000 | $ 0.07 | ||
| 28000 | $ 0.07 | |||
| 70000 | $ 0.06 | |||
| 140000 | $ 0.06 | |||
Description
General part information
TSD2JAL
Diode 600 V 2A Surface Mount Thin SMA
