AO3407A
ActiveUMW
30V 4.1A 52MR@10V,4.1A 1.4W 3V@2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

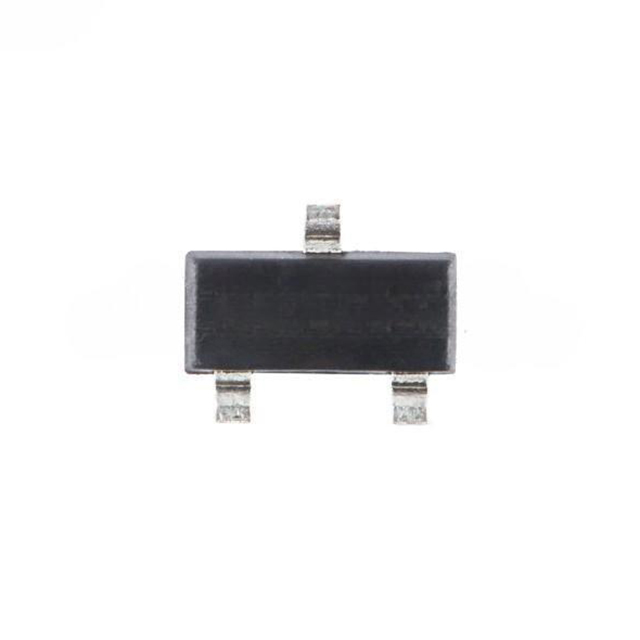

AO3407A
ActiveUMW
30V 4.1A 52MR@10V,4.1A 1.4W 3V@2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AO3407A |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 4.2 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 14.3 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 700 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power Dissipation (Max) | 1.4 W |
| Rds On (Max) @ Id, Vgs | 52 mOhm |
| Supplier Device Package | SOT-23 |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 3 V |
