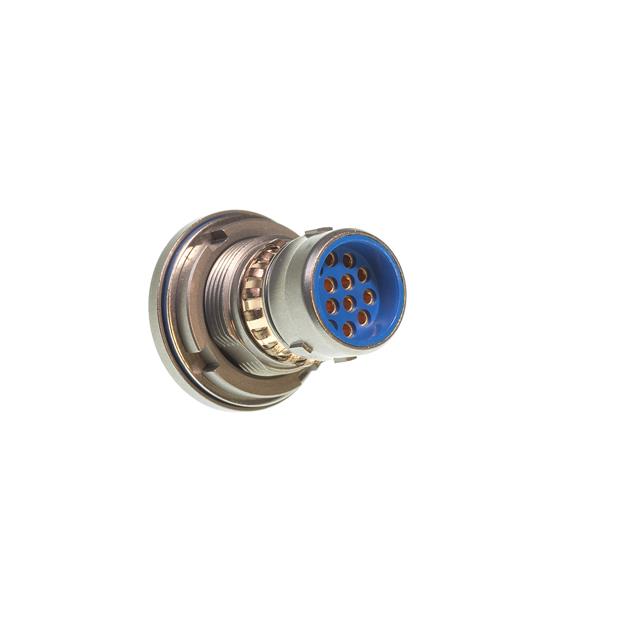

CMA 7Y14
ActiveBERNIER Connect
RECEPTACLE WITH 14 SOLDER CONTAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMA 7Y14
ActiveBERNIER Connect
RECEPTACLE WITH 14 SOLDER CONTAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMA 7Y14 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 1.5 A |
| Features | Board Guide |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Y |
| Primary Material | Metal |
| Shell Material | Stainless Steel |
| Shielding | Shielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 65.40 | |
| 10 | $ 55.59 | |||
| 100 | $ 47.26 | |||
Description
General part information
CMA 7Y14
14 Position Circular Connector Receptacle, Male Pins Solder Cup
