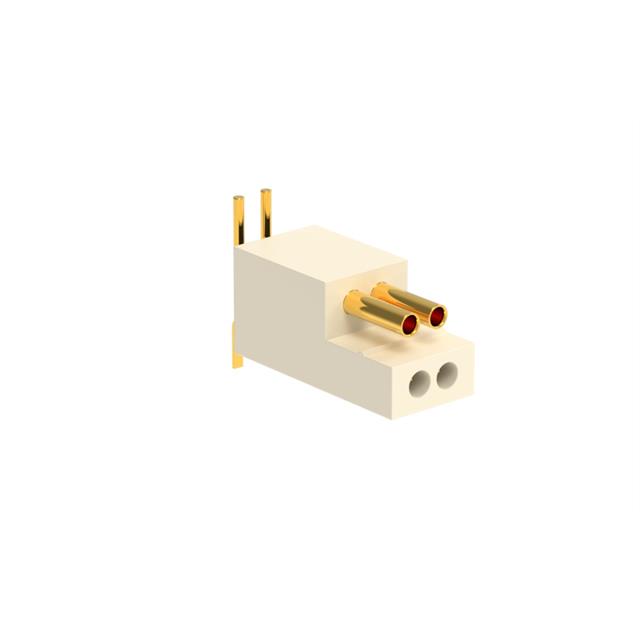

A79602-001
ActiveOmnetics
NANO 4POS MALE/FEMALE POLARIZED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A79602-001
ActiveOmnetics
NANO 4POS MALE/FEMALE POLARIZED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A79602-001 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Length - Mating | 0.06 in |
| Contact Length - Mating | 1.52 mm |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Male Pin, Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Natural |
| Insulation Height | 0.17 in |
| Insulation Height | 4.32 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.025 in |
| Pitch - Mating | 0.64 mm |
| Row Spacing - Mating | 1.02 mm |
| Row Spacing - Mating | 0.04 in |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 55.41 | |
| 10 | $ 50.84 | |||
| 100 | $ 44.65 | |||
Description
General part information
A79602-001
Connector Header Surface Mount 4 position 0.025" (0.64mm)
