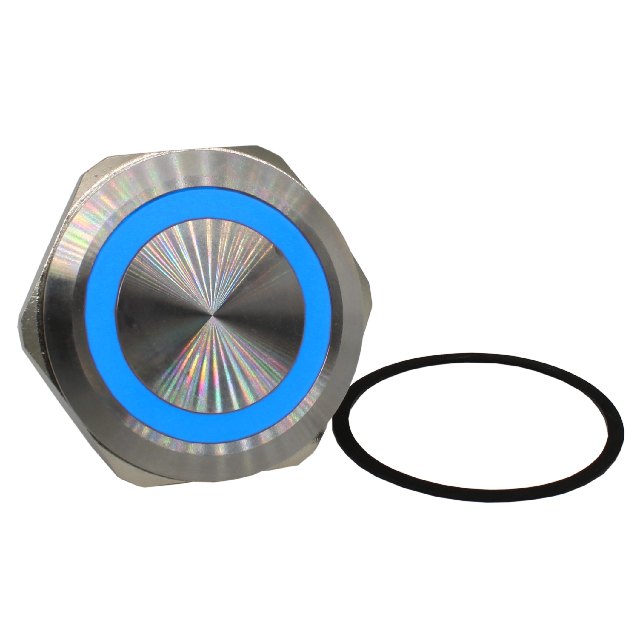

DH401NBSB110

Active

CIT Relay and Switch

SWITCH PB SPST-NO/NC 2A 125VAC

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST-NO/NC 2A 125VAC

Technical Specifications

Parameters and characteristics for this part

Specification	DH401NBSB110

Actuator Type	Flush, Button, Round
Circuit	SPST-NO + SPST-NC
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	110 V
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	40 mm
Switch Function	Off-Mom, On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5	$ 39.17

General part information

Pushbutton Switch SPST-NO + SPST-NC Anti-Vandal, Illuminated Panel Mount, Front
