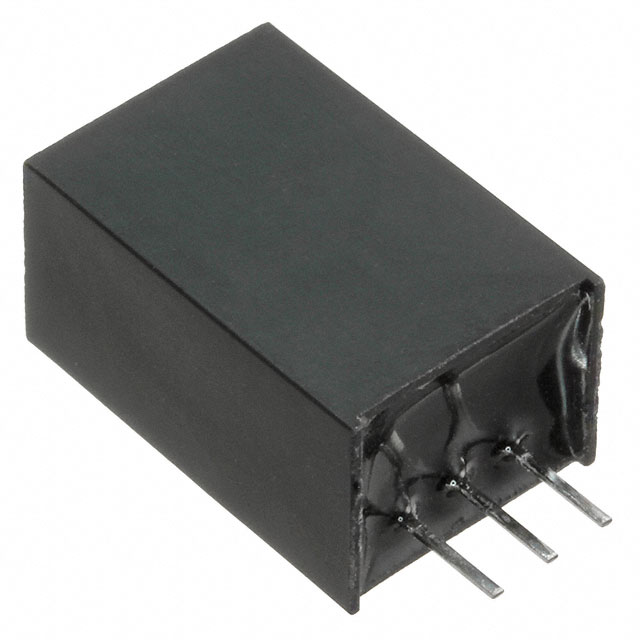

PM-1000B33
ActiveVolgen + Furuno
DC DC CONVERTER 3.3V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM-1000B33 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 91 % |
| Features | OTP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Size / Dimension [x] | 0.45 in |
| Size / Dimension [x] | 11.5 mm |
| Size / Dimension [y] | 0.35 " |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [z] | 0.69 " |
| Size / Dimension [z] | 17.5 mm |
| Type | Linear Regulator Replacement |
| Voltage - Input (Max) [Max] | 28 V |
| Voltage - Input (Min) [Min] | 4.75 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 200 | $ 6.14 | |
Description
General part information
PM-1000B33
Linear Regulator Replacement DC DC Converter 1 Output 3.3V 1A 4.75V - 28V Input
Documents
Technical documentation and resources
No documents available
