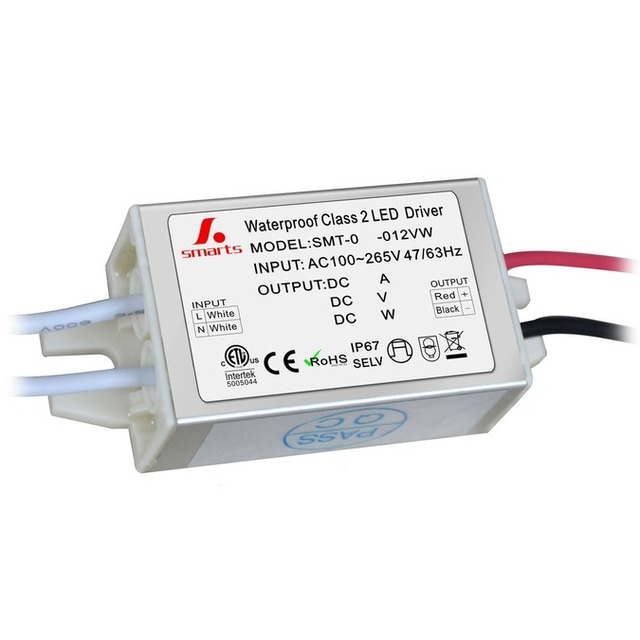

SMT-024-012VW
ActiveSmarts Electronic & Technology
AC/DC 24V 12W COMPACT IP67
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMT-024-012VW
ActiveSmarts Electronic & Technology
AC/DC 24V 12W COMPACT IP67
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT-024-012VW |
|---|---|
| Approval Agency | cETLus, CE |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 81 % |
| Features | OTP, SCP, OCP |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 12 W |
| Ratings | IP67 |
| Size / Dimension [x] | 2.64 in |
| Size / Dimension [x] | 67 mm |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [z] | 0.79 in |
| Size / Dimension [z] | 20 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 265 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 2000 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.71 | |
| 10 | $ 10.17 | |||
| 25 | $ 9.77 | |||
| 50 | $ 9.37 | |||
| 100 | $ 8.56 | |||
| 250 | $ 8.03 | |||
| 500 | $ 7.36 | |||
| 1000 | $ 7.12 | |||
Description
General part information
SMT-024-012VW
500mA 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
