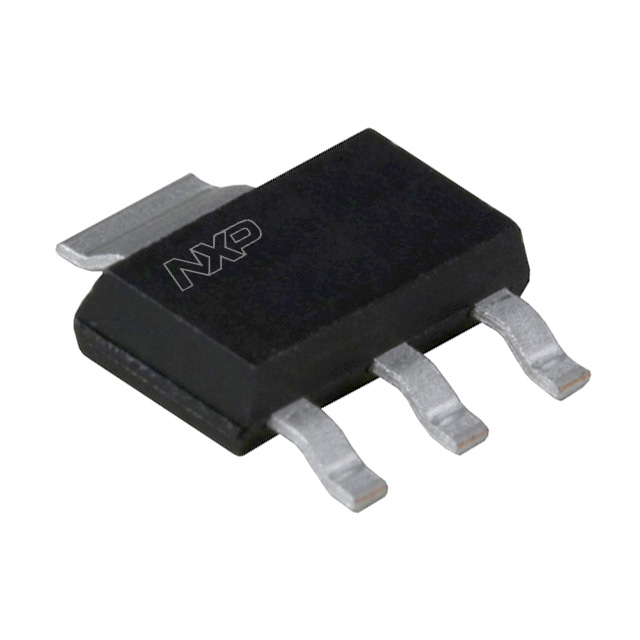

BT168GW,135
ActiveWeEn Semiconductors Co., Ltd
SCR 600V 1A SC73
Deep-Dive with AI
Search across all available documentation for this part.
BT168GW,135
ActiveWeEn Semiconductors Co., Ltd
SCR 600V 1A SC73
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BT168GW,135 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 200 µA |
| Current - Hold (Ih) (Max) [Max] | 5 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | 9 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | 8 A |
| Current - Off State (Max) [Max] | 100 mA |
| Current - On State (It (AV)) (Max) [Max] | 630 mA |
| Mounting Type | Surface Mount |
| Operating Temperature | 125 ¯C |
| Package / Case | TO-261AA, TO-261-4 |
| SCR Type | Sensitive Gate |
| Supplier Device Package | SC-73 |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 800 mV |
| Voltage - Off State | 600 V |
| Voltage - On State (Vtm) (Max) [Max] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| Digi-Reel® | 1 | $ 0.45 | ||
| Tape & Reel (TR) | 20000 | $ 0.10 | ||
| 28000 | $ 0.10 | |||
| 100000 | $ 0.10 | |||
Description
General part information
BT168GW,135
SCR 600 V 1 A Sensitive Gate Surface Mount SC-73
