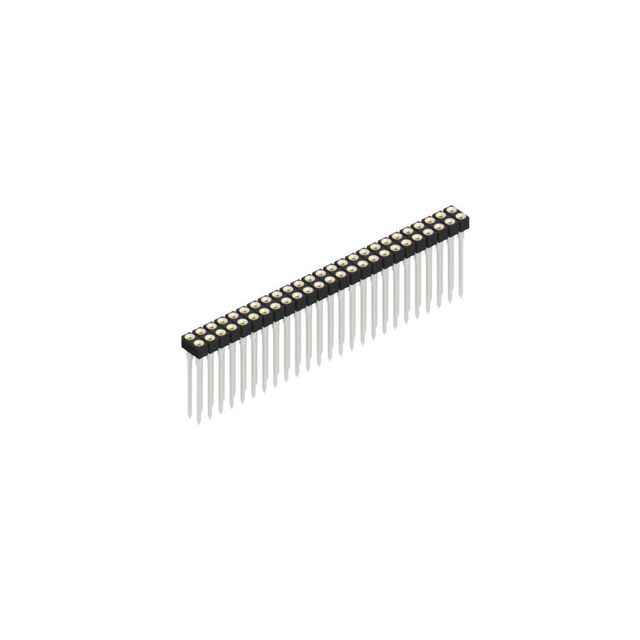

MK 207 50 Z
ActiveFischer Elektronik GmbH & Co. KG
FOR 0.5 MM
Deep-Dive with AI
Search across all available documentation for this part.
MK 207 50 Z
ActiveFischer Elektronik GmbH & Co. KG
FOR 0.5 MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MK 207 50 Z |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 157.5 Áin |
| Contact Finish Thickness - Post | 4 Ám |
| Contact Length - Post | 12.4 mm |
| Contact Length - Post | 0.488 in |
| Contact Material | Beryllium Copper |
| Contact Type | Precision |
| Current Rating (Amps) | 1.5 A |
| Insulation Height [z] | 0.098 in |
| Insulation Height [z] | 2.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 163 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 8.88 | |
Description
General part information
MK 207 50 Z
50 Position Header Connector 0.100" (2.54mm) Through Hole Gold
