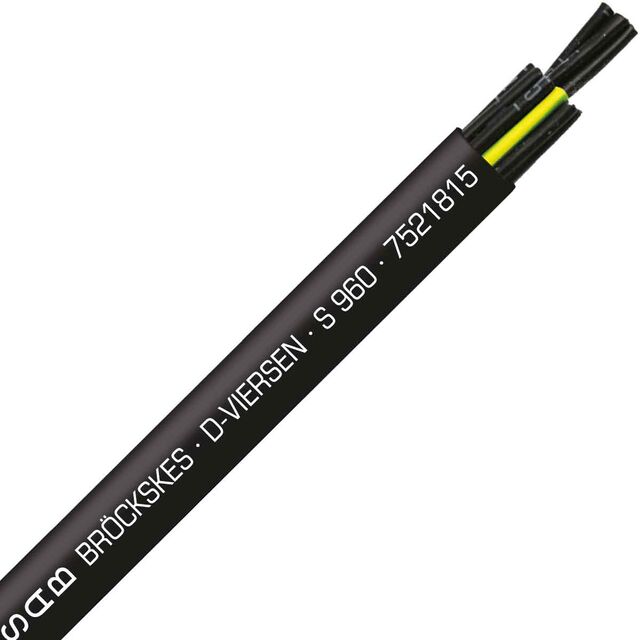

7521815
ActiveSAB North America
CABLE 15COND 18 AWG BLACK 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7521815
ActiveSAB North America
CABLE 15COND 18 AWG BLACK 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7521815 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Features | UV Resistant, Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 0.515 in |
| Jacket (Insulation) Diameter [diameter] | 13.08 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 15 |
| Operating Temperature | 194 °F |
| Ratings | UL Style 2587 |
| Voltage | 600 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 11.39 | |
| 25 | $ 9.64 | |||
| 100 | $ 9.56 | |||
| 250 | $ 8.70 | |||
| 500 | $ 8.14 | |||
| 1000 | $ 7.59 | |||
Description
General part information
7521815
15 Conductor Multi-Conductor Cable Black 18 AWG Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
