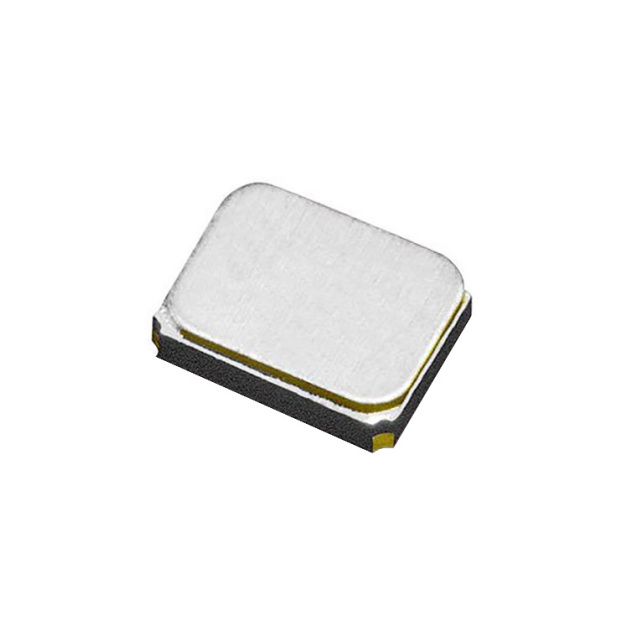

OT7ED8K5JI-111YXC-54M
ActiveYXC
YSO110TR 54MHZ 1.8V-3.3V 10PPM O
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OT7ED8K5JI-111YXC-54M
ActiveYXC
YSO110TR 54MHZ 1.8V-3.3V 10PPM O
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OT7ED8K5JI-111YXC-54M |
|---|---|
| Base Resonator | Crystal |
| Frequency | 54 MHz |
| Frequency Stability | 10 ppm |
| Function | Enable/Disable |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.82 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.53 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 1.25 | |||
| Digi-Reel® | 1 | $ 1.91 | ||
| 10 | $ 1.82 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.53 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 1.25 | |||
| Tape & Reel (TR) | 3000 | $ 1.24 | ||
| 6000 | $ 1.18 | |||
Description
General part information
OT7ED8K5JI-111YXC-54M
54 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Enable/Disable 4-SMD, No Lead
