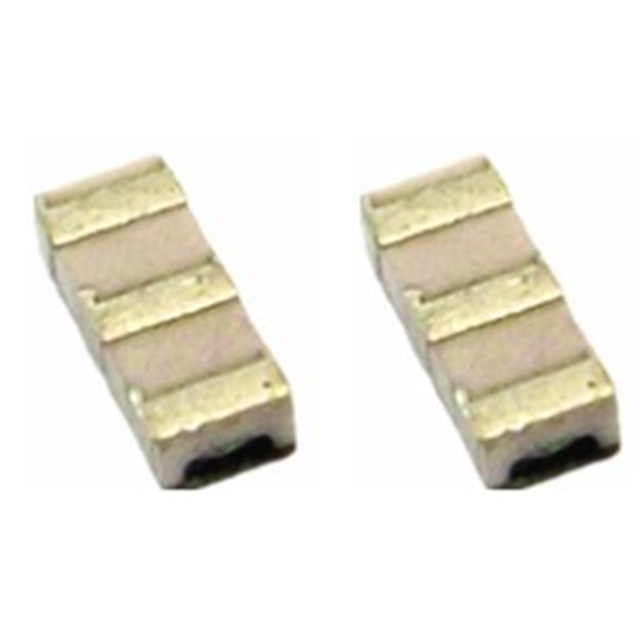

CH10M00000S010
ActiveTGS
CERAMIC RES 10MHZ 10PF SMD3213
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CH10M00000S010
ActiveTGS
CERAMIC RES 10MHZ 10PF SMD3213
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CH10M00000S010 |
|---|---|
| Capacitance | 10 pF |
| Features | Built in Capacitor |
| Frequency | 10 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.5 % |
| Height [z] | 0.039 in |
| Height [z] | 1 mm |
| Impedance | 40 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 0.051 " |
| Size / Dimension [y] | 1.3 mm |
| Type | Ceramic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.20 | |
Description
General part information
CH10M00000S010
10 MHz Ceramic Resonator Built in Capacitor 10 pF ±0.3% 40 Ohms -25°C ~ 85°C Surface Mount
