Y14780R00200F9R
ActiveVPG Foil Resistors
CURRENT SENSE RES, R002, 5W, 4026 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
Y14780R00200F9R
ActiveVPG Foil Resistors
CURRENT SENSE RES, R002, 5W, 4026 ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Y14780R00200F9R |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) [Max] [z] | 3.5 mm |
| Height - Seated (Max) [Max] [z] | 0.138 in |
| Number of Terminations | 4 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Strip, L Bend |
| Power (Watts) | 5 W |
| Ratings | AEC-Q200 |
| Resistance | 2 mOhms |
| Size / Dimension [x] | 11.9 mm |
| Size / Dimension [x] | 0.469 in |
| Size / Dimension [y] | 6.6 mm |
| Size / Dimension [y] | 0.26 " |
| Supplier Device Package | SMD |
| Temperature Coefficient | 40 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.06 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.06 | ||
| 10 | $ 0.89 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.48 | |||
| Tape & Reel (TR) | 1000 | $ 0.38 | ||
| Newark | Each (Supplied on Cut Tape) | 10 | $ 0.93 | |
| 25 | $ 0.90 | |||
| 50 | $ 0.82 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.50 | |||
Description
General part information
Y14780R00200F9R

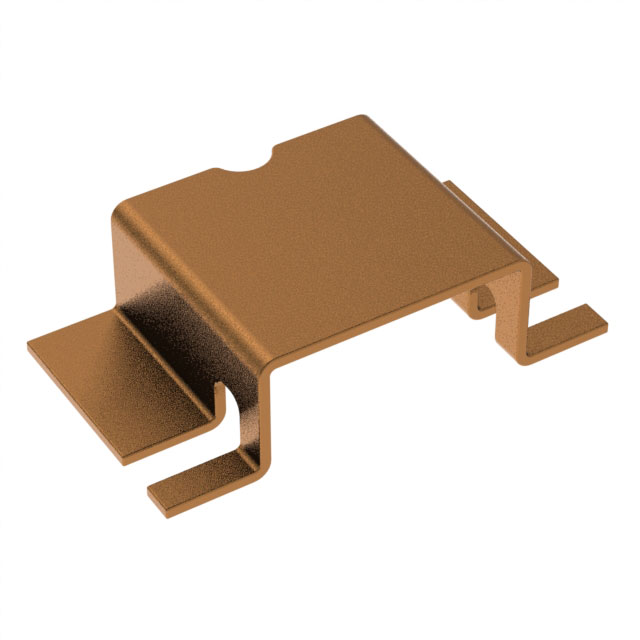

2 mOhms ±1% 5W Chip Resistor Strip, L Bend Automotive AEC-Q200, Current Sense Metal Element
