DK-5603-SB-WH-100
ActiveSyston
18/2 CMP/CL3P UNSHIELDED CU WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DK-5603-SB-WH-100
ActiveSyston
18/2 CMP/CL3P UNSHIELDED CU WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DK-5603-SB-WH-100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Features | UV Resistant, Flame Retardant, Low Smoke, Low Voltage |
| Jacket (Insulation) Diameter [diameter] | 0.165 in |
| Jacket (Insulation) Diameter [diameter] | 4.19 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Ratings | NEC 725/800, NFPA 262, CSA-C22.2, ASTM B-3/B8, UL 13/444 |
| Usage | Alarm, Instrumentation, Access Control, Communication, Security |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.44 | |
| 5 | $ 28.92 | |||
| 10 | $ 27.40 | |||
| 20 | $ 25.87 | |||
| 50 | $ 22.83 | |||
Description
General part information
DK-5603-SB-WH-100

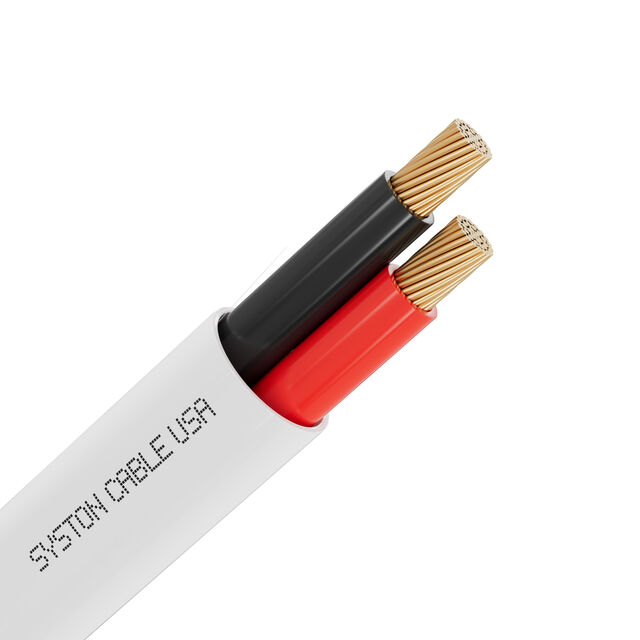

2 Conductor Multi-Conductor Cable White 18 AWG 100.0' (30.5m)
