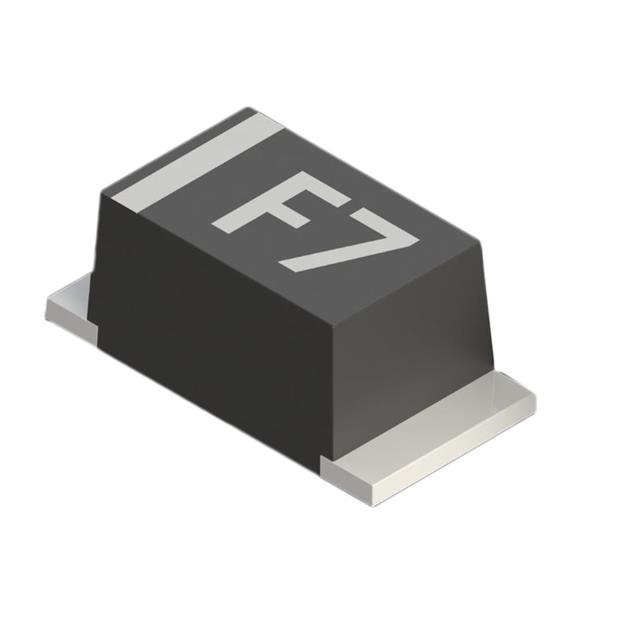

FFM107-N-H
ActiveFormosa Microsemi Co., Ltd.
DIODE GEN PURP 1KV 1A SOD323
Deep-Dive with AI
Search across all available documentation for this part.
FFM107-N-H
ActiveFormosa Microsemi Co., Ltd.
DIODE GEN PURP 1KV 1A SOD323
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFM107-N-H |
|---|---|
| Capacitance @ Vr, F | 4 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | SOD-323F, SC-90 |
| Reverse Recovery Time (trr) | 500 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SOD-323 |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.14 | |
| 50 | $ 0.11 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| 3000 | $ 0.03 | |||
Description
General part information
FFM107-N-H
Diode 1000 V 1A Surface Mount SOD-323
Documents
Technical documentation and resources
No documents available
