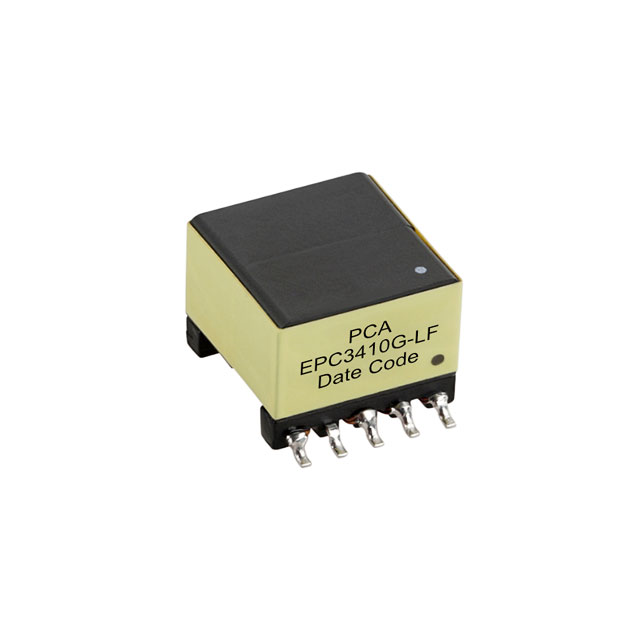

EPC3410G-LF
ActivePCA Electronics, Inc.
XFMR FLYBACK DC/DC CONV 37UH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPC3410G-LF
ActivePCA Electronics, Inc.
XFMR FLYBACK DC/DC CONV 37UH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC3410G-LF |
|---|---|
| Chipset Manufacturer | Analog Devices |
| Footprint [x] | 13.97 mm |
| Footprint [x] | 0.55 in |
| Footprint [y] | 0.669 in |
| Footprint [y] | 17 mm |
| Frequency | 250 kHz |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Intended Chipset | LT42691 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Type | For DC/DC Converters |
| Voltage - Auxiliary | 12 V |
| Voltage - Isolation | 1500 VAC |
| Voltage - Primary [Max] | 57 V |
| Voltage - Primary [Min] | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 3.00 | |
| 5 | $ 2.80 | |||
| 10 | $ 2.25 | |||
| 25 | $ 1.82 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.73 | |||
| 250 | $ 1.68 | |||
Description
General part information
EPC3410G-LF
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250kHz Surface Mount
