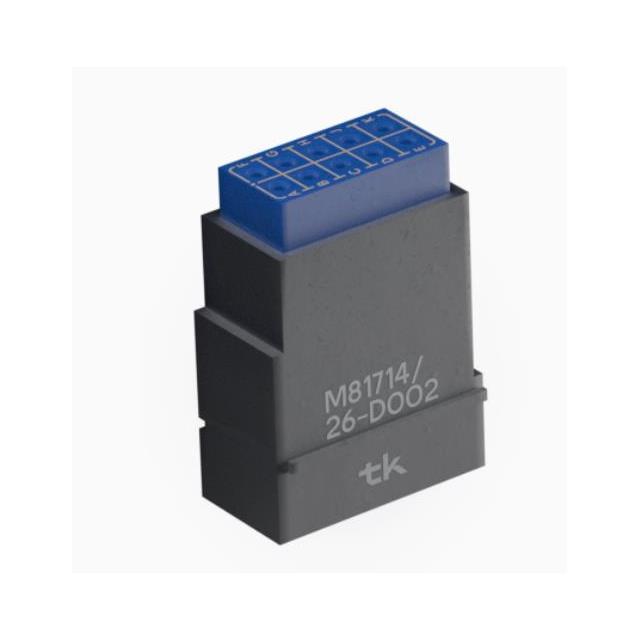

M81714/26-D002
ActiveDME INTERCONNECT
CONN DIODE MOD SZ20 0.855" L X 0
Deep-Dive with AI
Search across all available documentation for this part.
M81714/26-D002
ActiveDME INTERCONNECT
CONN DIODE MOD SZ20 0.855" L X 0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M81714/26-D002 |
|---|---|
| Contact Size | 20 |
| Grade | Military |
| Module Capacity | 10 |
| Qualification | MIL-T-81714 |
| Size / Dimension [x] | 0.855 in |
| Size / Dimension [x] | 21.72 mm |
| Size / Dimension [y] | 10.03 mm |
| Size / Dimension [y] | 0.395 in |
| Size / Dimension [z] | 33.27 mm |
| Size / Dimension [z] | 1.31 " |
| Type | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 245.00 | |
| 20 | $ 230.30 | |||
| 50 | $ 218.05 | |||
| 250 | $ 208.25 | |||
Description
General part information
M81714/26-D002
Connector Module Contact Size 20
Documents
Technical documentation and resources
No documents available
