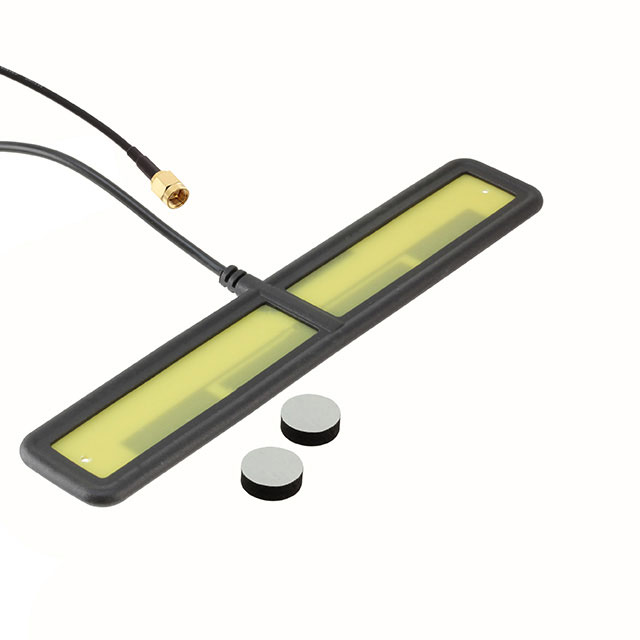

ALPHA40/1.5M/SMAM/S/S/29
ActiveSiretta Ltd
RF ANT 762MHZ/1.94GHZ FLAT BAR
Deep-Dive with AI
Search across all available documentation for this part.
ALPHA40/1.5M/SMAM/S/S/29
ActiveSiretta Ltd
RF ANT 762MHZ/1.94GHZ FLAT BAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALPHA40/1.5M/SMAM/S/S/29 |
|---|---|
| Antenna Type | Flat Bar |
| Applications | Bluetooth, WLAN |
| Frequency (Center/Band) | 2.5 GHz, 1.94 GHz, 762 MHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.7 GHz, 824 MHz, 2.17 GHz |
| Frequency Range [Min] | 2.3 GHz, 1.71 GHz, 700 MHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 4.5 mm |
| Height (Max) [Max] | 0.177 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| RF Family/Standard | Cellular, Bluetooth, 802.15.4, WiFi |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.34 | |
| 10 | $ 11.72 | |||
| 25 | $ 10.54 | |||
| 100 | $ 9.21 | |||
| 250 | $ 8.57 | |||
| 500 | $ 8.18 | |||
| 1000 | $ 8.10 | |||
Description
General part information
ALPHA40/1.5M/SMAM/S/S/29
RF ANTENNA Bluetooth, WLAN Flat Bar SMA Male Adhesive
