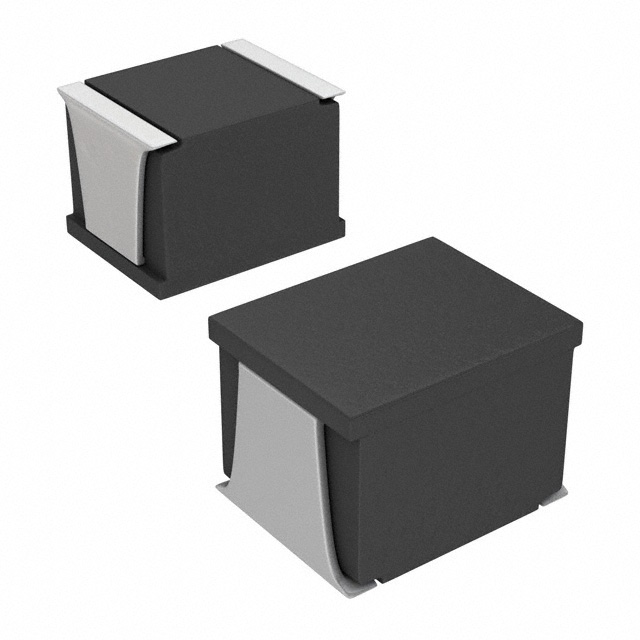

FSLU2520-8R2JP2
ObsoleteToko America Inc.
FIXED IND 8.2UH 160MA 2.9 OHM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSLU2520-8R2JP2
ObsoleteToko America Inc.
FIXED IND 8.2UH 160MA 2.9 OHM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSLU2520-8R2JP2 |
|---|---|
| Current Rating (Amps) | 160 mA |
| DC Resistance (DCR) [Max] | 2.9 Ohm |
| Frequency - Self Resonant | 40 MHz |
| Height - Seated (Max) [Max] | 0.071 " |
| Height - Seated (Max) [Max] | 1.8 mm |
| Inductance | 8.2 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1008 |
| Q @ Freq | 7.96 MHz, 30 |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Supplier Device Package | 2520 |
| Supplier Device Package | 1008 |
| Tolerance | 5 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.18 | |
Description
General part information
FSLU2520-8R2JP2
8.2 µH Unshielded Wirewound Inductor 160 mA 2.9Ohm Max 1008 (2520 Metric)
