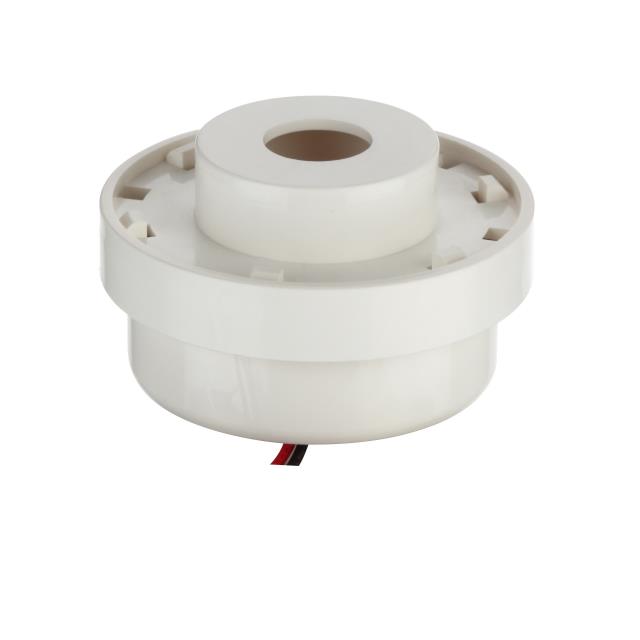

EFM-320SA
ActiveEast Electronics
BUZZER 12V 45MM WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EFM-320SA
ActiveEast Electronics
BUZZER 12V 45MM WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM-320SA |
|---|---|
| Current - Supply | 35 mA |
| Frequency | 2.9 kHz |
| Height - Seated (Max) [Max] [z] | 26 mm |
| Height - Seated (Max) [Max] [z] | 1.024 in |
| Mounting Type | Wire Lead |
| Operating Mode | Continuous |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Size / Dimension [diameter] | 45 mm |
| Size / Dimension [diameter] | 1.772 in |
| Sound Pressure Level (SPL) | 105 dB |
| Termination | Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 16 V |
| Voltage Range [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EFM-320SA
Buzzers 12 V 35mA 2.9kHz 105dB @ 12V, 30cm Wire Lead Wire Leads
