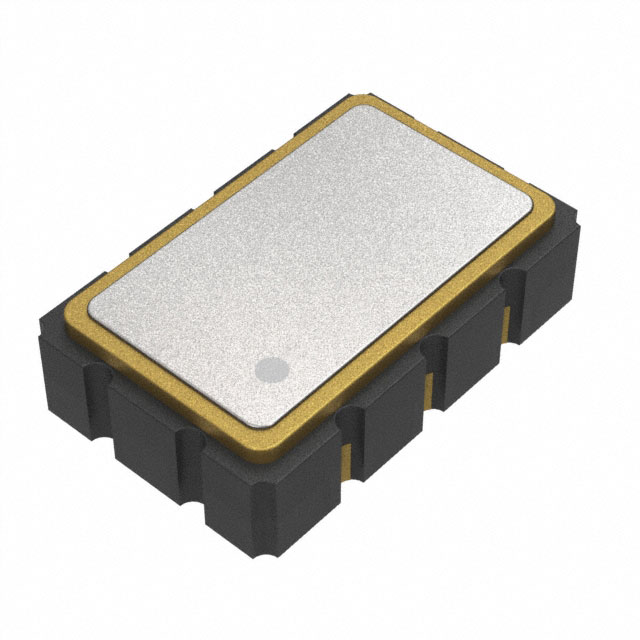

AX5DBF2-625.0000C
UnknownAbracon LLC
OSC XO 625MHZ 2.5V LVDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AX5DBF2-625.0000C
UnknownAbracon LLC
OSC XO 625MHZ 2.5V LVDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AX5DBF2-625.0000C |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 70 mA |
| Current - Supply (Max) [Max] | 80 mA |
| Frequency | 625 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AX5DBF2-625.0000C
625 MHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 8-SMD, No Lead
