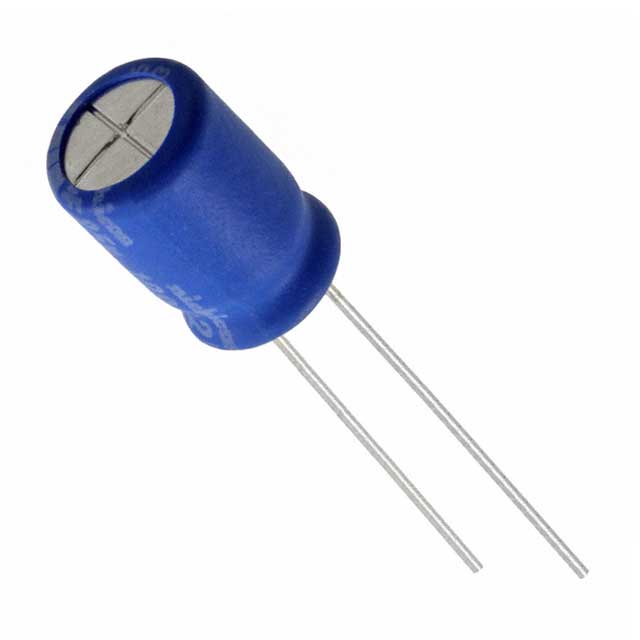

UBW1J220MPD1TA - UBW SERIES 13.50mm

UBW1J220MPD1TA

Active
NICHICON

CAP ALUM 22UF 20% 63V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
UBW1J220MPD1TA - UBW SERIES 13.50mm

UBW1J220MPD1TA

Active
NICHICON

CAP ALUM 22UF 20% 63V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationUBW1J220MPD1TA
ApplicationsAutomotive
Capacitance22 µF
Height - Seated (Max)13.5 mm
Height - Seated (Max) [Max] [z]0.531 "
Impedance2 Ohms
Lead Spacing3.5 mm
Lead Spacing0.138 in
Lifetime @ Temp.1000 Hrs
Mounting TypeThrough Hole
Operating Temperature [Max]135 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can
PolarizationPolar
Ripple Current @ High Frequency130 mA
Ripple Current @ Low Frequency65 mA
Size / Dimension [diameter]0.315 "
Size / Dimension [diameter]8 mm
Tolerance20 %
Voltage - Rated63 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.69
10$ 0.48
50$ 0.41
100$ 0.33
500$ 0.28
Tape & Box (TB) 1000$ 0.23
2000$ 0.22
5000$ 0.20
10000$ 0.20
25000$ 0.19
50000$ 0.18
NewarkEach (Supplied on Full Reel) 1$ 0.25
5000$ 0.25
10000$ 0.23
20000$ 0.21
30000$ 0.20
50000$ 0.19

Description

General part information

UBW1J220MPD1TA

22 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 135°C
