1016KWTFMS
ActiveKanebridge
SELF-DRILLING SCREW - TYPE CSD -
Deep-Dive with AI
Search across all available documentation for this part.
1016KWTFMS
ActiveKanebridge
SELF-DRILLING SCREW - TYPE CSD -
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1016KWTFMS |
|---|---|
| Drive Type | 6-Lobe |
| Features | Standard |
| Head Diameter [diameter] | 12.17 mm |
| Head Diameter [diameter] | 0.479 in |
| Head Height | 2.41 mm |
| Head Height | 0.095 in |
| Length - Below Head | 25.4 mm |
| Length - Below Head | 1 in |
| Length - Overall | 27.81 mm |
| Length - Overall [x] | 1.095 in |
| Plating | Zinc |
| Screw Head Type | Wafer Head |
| Thread Size | #10-24 |
| Type | Self-Drilling Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 5000 | $ 0.16 | |
Description
General part information

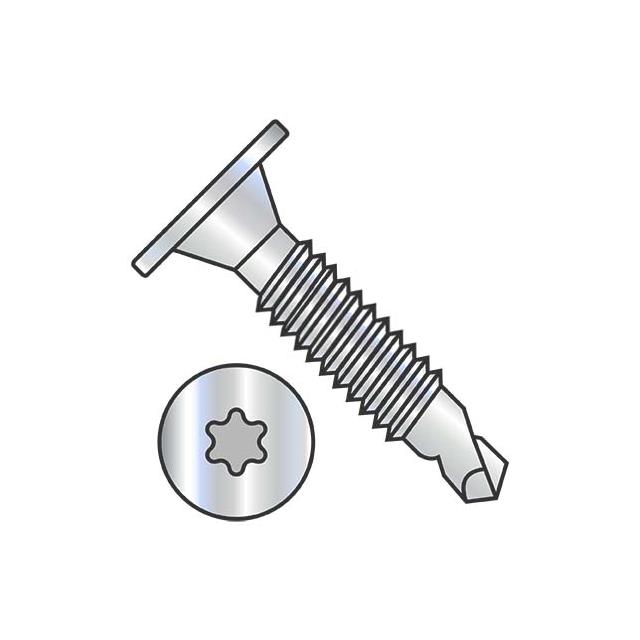

1016KWTFMS
#10-24 Wafer Head Self-Drilling Screw 6-Lobe Drive Steel
Documents
Technical documentation and resources
No documents available
