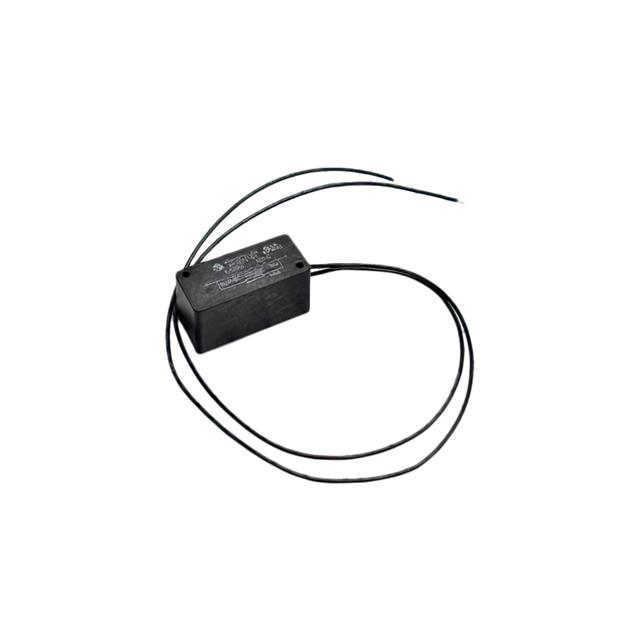

RG1676-38
ActiveElectrocube
RC NETWORK, 0.5 MFD, 50 OHM, 250
Deep-Dive with AI
Search across all available documentation for this part.
RG1676-38
ActiveElectrocube
RC NETWORK, 0.5 MFD, 50 OHM, 250
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG1676-38 |
|---|---|
| Applications | General Purpose |
| ESD Protection | True |
| Filter Order | 1st |
| Height [z] | 76.2 mm |
| Height [z] | 3 in |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Package / Case | Block, 4 Lead |
| Size / Dimension [x] | 1.37 in |
| Size / Dimension [x] | 34.8 mm |
| Size / Dimension [y] | 1.28 in |
| Size / Dimension [y] | 32.51 mm |
| Technology | RC |
| Type | Low Pass |
| Values | 50 Ohms, 0.5 µF |
| Voltage - Rated | 600 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.59 | |
Description
General part information
RG1676-38
RC EMI Filter 1st Order Low Pass 1 Channel R = 50Ohm, C = 0.5µF Block, 4 Lead
Documents
Technical documentation and resources
No documents available
