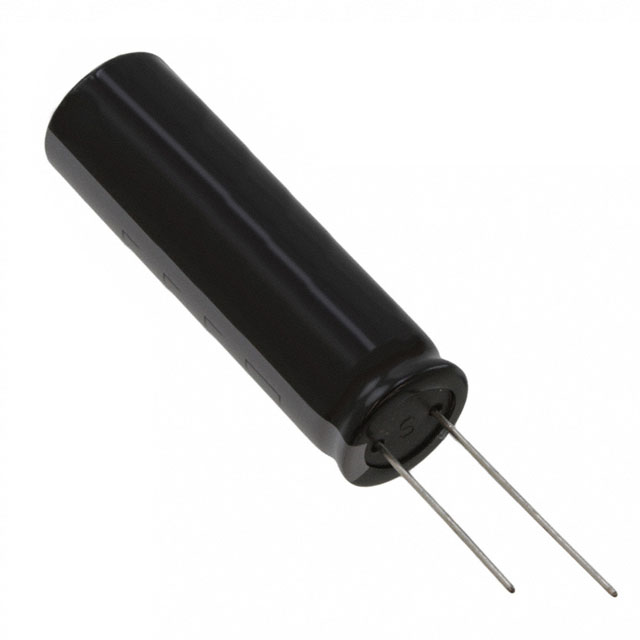

450HXW39MEFR10X30
ActiveRubycon
CAP ALUM 39UF 20% 450V RADIAL TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
450HXW39MEFR10X30
ActiveRubycon
CAP ALUM 39UF 20% 450V RADIAL TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 450HXW39MEFR10X30 |
|---|---|
| Applications | General Purpose |
| Capacitance | 39 µF |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lifetime @ Temp. | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Polarization | Polar |
| Ripple Current @ High Frequency | 600 mA |
| Ripple Current @ Low Frequency | 400 mA |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.48 | |
| 10 | $ 1.64 | |||
| 50 | $ 1.29 | |||
| 100 | $ 1.18 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.93 | |||
| 2500 | $ 0.87 | |||
| 5000 | $ 0.83 | |||
Description
General part information
450HXW39MEFR10X30
39 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
