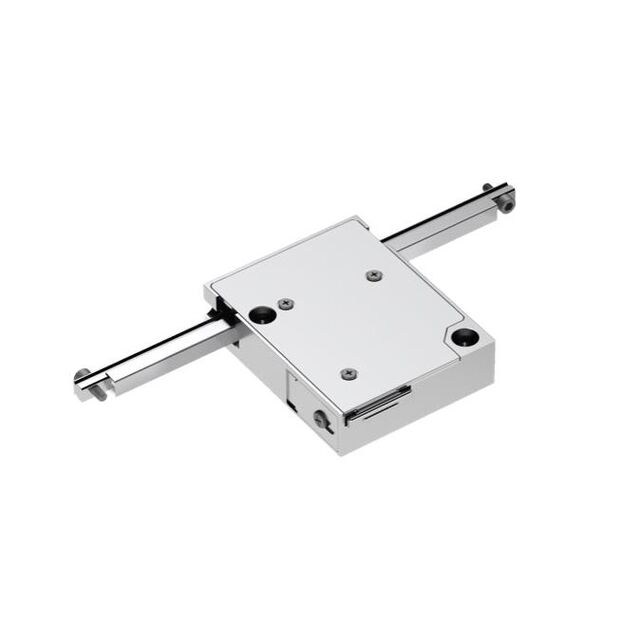

XLA-5-65-1250
ActiveXeryon
MICRO ACTUATOR - EVALUATION KIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLA-5-65-1250
ActiveXeryon
MICRO ACTUATOR - EVALUATION KIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLA-5-65-1250 |
|---|---|
| Accuracy | 5 µm |
| Construction | Rack and Pinion |
| Duty Cycle | 50 % |
| Features | Submicron Precision |
| Feedback Type | Incremental Encoder |
| Load Force (Dynamic) | 5 N |
| Load Force (Dynamic) | 1.123 lbf |
| Load Force (Static) | 1.123 lbf |
| Load Force (Static) | 5 N |
| Motor Type | Piezoelectric |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Speed | 400 mm/s |
| Speed | 15.75 in/s |
| Stroke Length | 1.181 in |
| Stroke Length | 30 mm |
| Termination Style | Connector |
| Type | Linear Actuator |
| Voltage - Rated [Max] | 48 V |
| Voltage - Rated [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 539.00 | |
Description
General part information
XLA-5-65-1250
MICRO ACTUATOR - EVALUATION KIT
