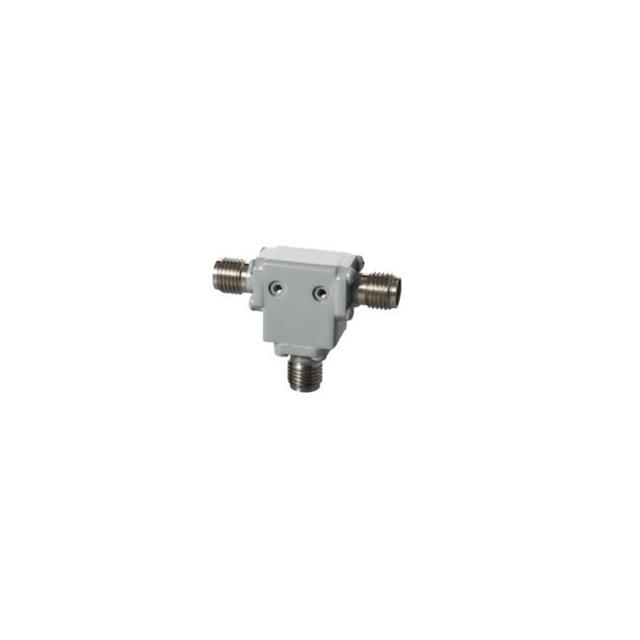

DHC6018-5
ActiveDiTom Microwave
6.00 - 18.00 GHZ HI-REL CIRCULAT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DHC6018-5
ActiveDiTom Microwave
6.00 - 18.00 GHZ HI-REL CIRCULAT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DHC6018-5 |
|---|---|
| Connector Type | SMA-FEMALE, SMA-MALE |
| Frequency [Max] | 18 GHz |
| Frequency [Min] | 6 GHz |
| Insertion Loss | 1 dB |
| Isolation | 14 dB |
| Package / Case | Module, SMA Connectors |
| Power - Average Forward | 10 W |
| Supplier Device Package | Module |
| Type | Circulator |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1831.64 | |
Description
General part information
DHC6018-5
6.00 - 18.00 GHZ HI-REL CIRCULAT
Documents
Technical documentation and resources
