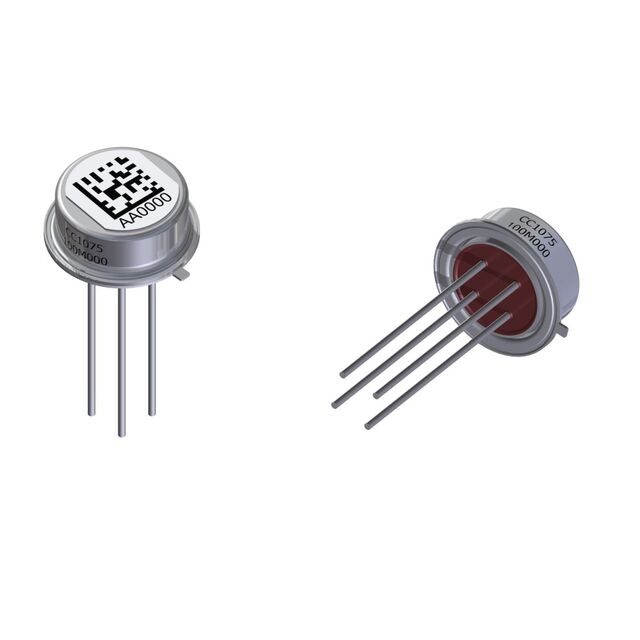

CC1075
ActiveQuantic Croven
100 MHZ, SC, 5TH, TO-5LP, LTP 8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CC1075
ActiveQuantic Croven
100 MHZ, SC, 5TH, TO-5LP, LTP 8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CC1075 |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 100 MHz |
| Frequency Tolerance | ±5ppm |
| Height - Seated (Max) [Max] [z] | 3.94 mm |
| Height - Seated (Max) [Max] [z] | 0.155 " |
| Mounting Type | Through Hole |
| Operating Mode | 5th Overtone |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | TO-5, HC-35/U |
| Size / Dimension | 10.41 mm |
| Size / Dimension [diameter] | 0.41 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 5 | $ 108.50 | |
| 10 | $ 97.70 | |||
| 25 | $ 90.50 | |||
| 50 | $ 73.00 | |||
| 100 | $ 60.30 | |||
| 200 | $ 57.60 | |||
| 250 | $ 56.70 | |||
Description
General part information
CC1075
100 MHz ±5ppm Crystal Series 100 Ohms HC-35/U, TO-5
