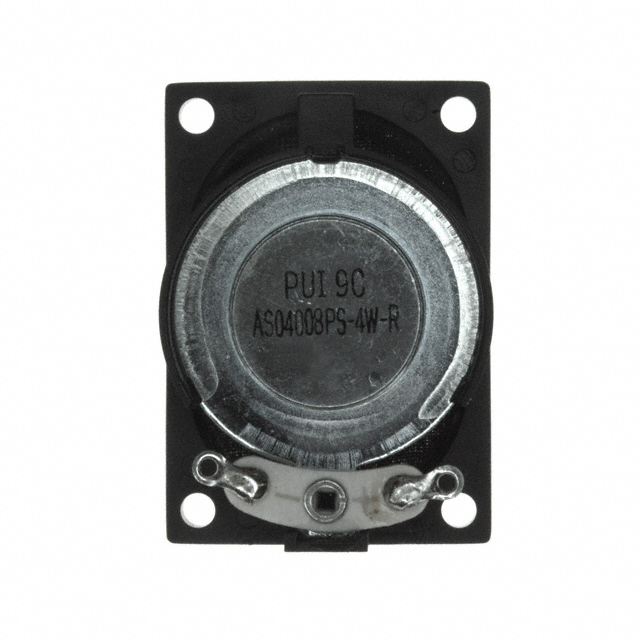

AS04008PS-4W-R
ActivePUI AUDIO
SPEAKER, 84 DB, 380 HZ, 8 OHM, 200HZ TO 20KHZ, 2 W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS04008PS-4W-R
ActivePUI AUDIO
SPEAKER, 84 DB, 380 HZ, 8 OHM, 200HZ TO 20KHZ, 2 W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS04008PS-4W-R |
|---|---|
| Efficiency - dBA | 84 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 380 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 380 Hz |
| Height - Seated (Max) [Max] [z] | 12 mm |
| Height - Seated (Max) [Max] [z] | 0.472 " |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 4 W |
| Power - Rated | 2 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [x] | 1.575 in |
| Size / Dimension [y] | 28.3 mm |
| Size / Dimension [y] | 1.114 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AS04008PS-4W-R
8 Ohms General Purpose Speaker 2 W 380 Hz ~ 20 kHz Top Oval, Rectangular Frame
