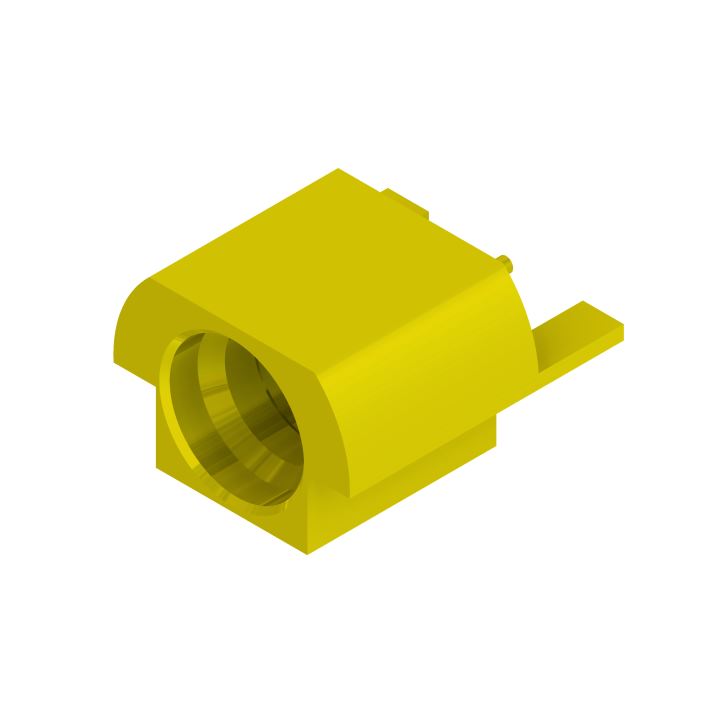

MMSP-3805
ActiveMicro-Mode
SMPM PLUG STR 50 OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MMSP-3805
ActiveMicro-Mode
SMPM PLUG STR 50 OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MMSP-3805 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | Limited Detent |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Cutout, Board Edge, Surface Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 26.79 | |
| 10 | $ 22.77 | |||
| 25 | $ 21.35 | |||
| 50 | $ 20.33 | |||
| 100 | $ 19.36 | |||
| 300 | $ 17.92 | |||
| 500 | $ 17.28 | |||
Description
General part information
MMSP-3805
SMP Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
