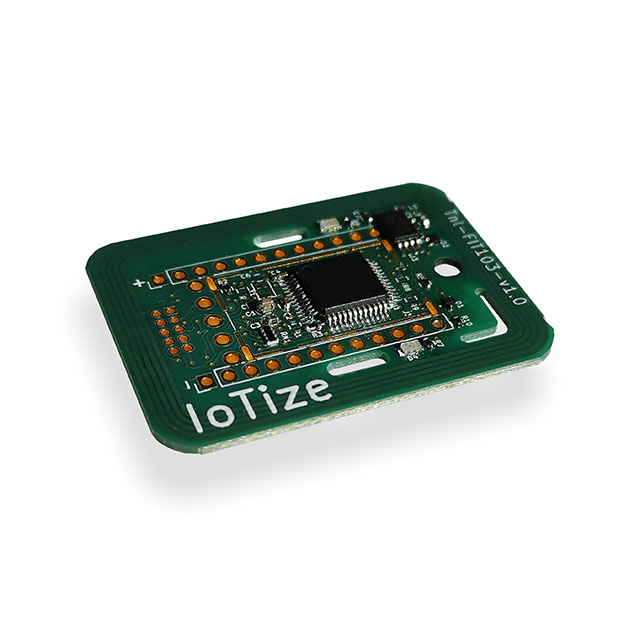

TNL-FIT203
ActiveIoTize
RF TXRX MOD NFC PCB CONN MT
Deep-Dive with AI
Search across all available documentation for this part.
TNL-FIT203
ActiveIoTize
RF TXRX MOD NFC PCB CONN MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TNL-FIT203 |
|---|---|
| Antenna Type | Integrated, PCB |
| Current - Receiving | 7 mA |
| Current - Transmitting | 7 mA |
| Data Rate | 2 kbps |
| Frequency | 13.56 MHz |
| Mounting Type | Connector Mount |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Protocol | NFC |
| RF Family/Standard | NFC |
| Serial Interfaces | SWD, UART, GPIO |
| Utilized IC / Part | ST25DV |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 23.97 | |
| 10 | $ 22.12 | |||
| 25 | $ 21.64 | |||
Description
General part information
TNL-FIT203
NFC NFC Transceiver Module 13.56MHz Integrated, PCB Connector Mount
Documents
Technical documentation and resources
No documents available
