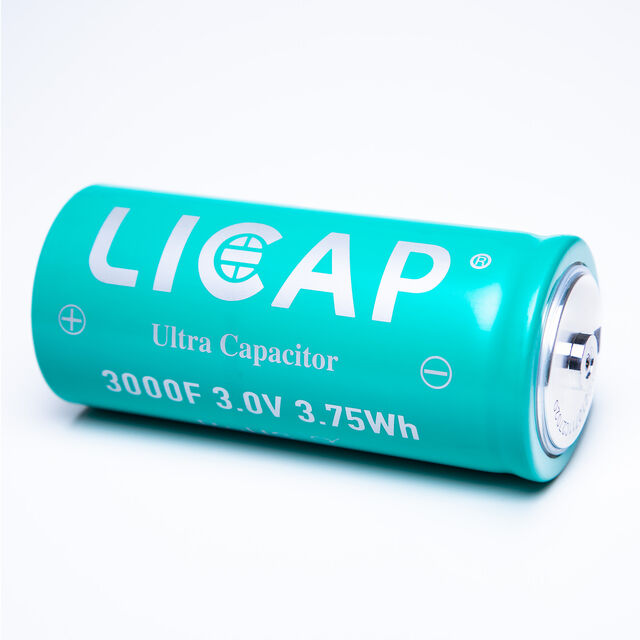

SC3000-300-ASC
ActiveLICAP Technologies, Inc.
CAP 3V 3000F AXIAL SCREW TERMINA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC3000-300-ASC
ActiveLICAP Technologies, Inc.
CAP 3V 3000F AXIAL SCREW TERMINA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC3000-300-ASC |
|---|---|
| Capacitance | 3000 F |
| ESR (Equivalent Series Resistance) | 0.29 mOhm |
| Lifetime @ Temp. | 1500 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial, Can - Screw Terminals |
| Size / Dimension [custom] | 5.413 in |
| Size / Dimension [custom] | 137.5 mm |
| Size / Dimension [diameter] | 61 mm |
| Size / Dimension [diameter] | 2.402 in |
| Termination | Screw Terminals |
| Tolerance [Max] | 20 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 84.75 | |
| 10 | $ 68.41 | |||
| 60 | $ 59.96 | |||
| 120 | $ 57.41 | |||
Description
General part information
SC3000-300-ASC
3000 F (EDLC) Supercapacitor 3 V Axial, Can - Screw Terminals 0.29mOhm 1500 Hrs @ 65°C
