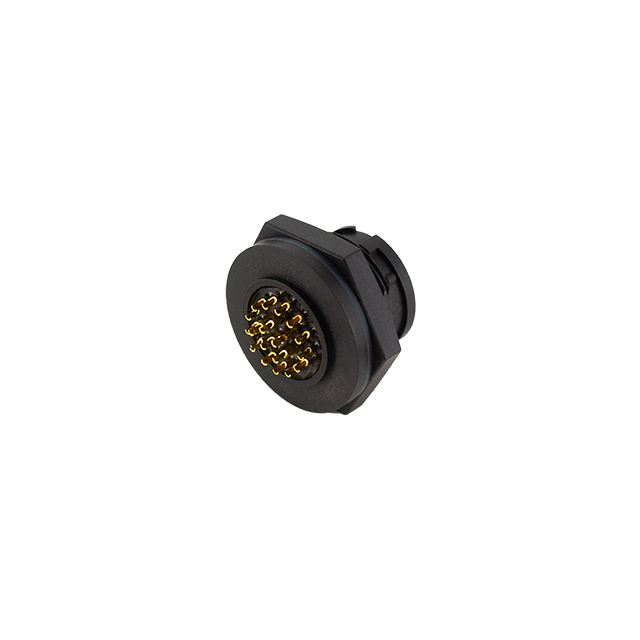

227C-20M03
ActiveATTEND Technology
C SIZE WATERPROOF CONNECTOR,PANE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
227C-20M03
ActiveATTEND Technology
C SIZE WATERPROOF CONNECTOR,PANE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 227C-20M03 |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1 µin |
| Contact Finish Thickness - Mating | 0.025 µm |
| Contact Material | Brass |
| Current Rating (Amps) | 2 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 20 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | C |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.55 | |
| 10 | $ 11.51 | |||
| 100 | $ 9.79 | |||
| 1000 | $ 8.32 | |||
Description
General part information
227C-20M03
20 Position Circular Connector Receptacle, Male Pins Solder Cup
