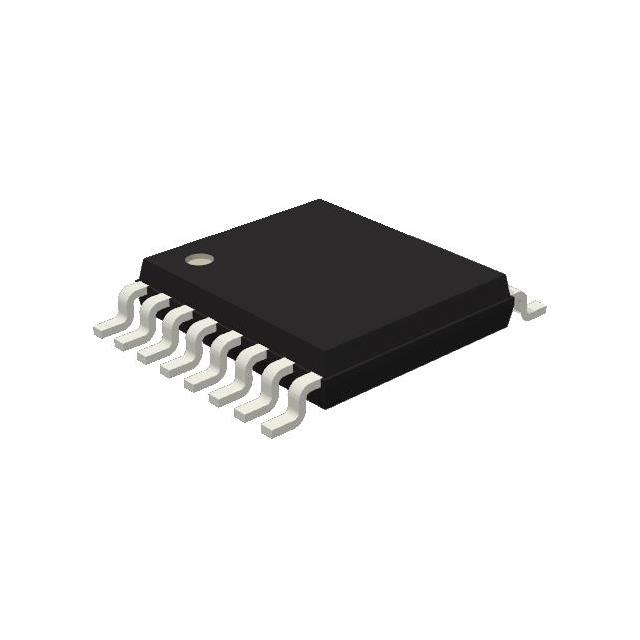

LS7272B-TS
ActiveLSI/CSI
30 VOLT DIFFERENTIAL LINE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS7272B-TS
ActiveLSI/CSI
30 VOLT DIFFERENTIAL LINE DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LS7272B-TS |
|---|---|
| Mounting Type | Surface Mount |
| Number of Drivers/Receivers [custom] | 4 |
| Number of Drivers/Receivers [custom] | 0 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Receiver Hysteresis | 500 mV |
| Supplier Device Package | 16-TSSOP |
| Type | Driver |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 7.08 | |
| 25 | $ 5.64 | |||
| 100 | $ 4.48 | |||
| 500 | $ 3.62 | |||
| 1000 | $ 2.89 | |||
Description
General part information
LS7272B-TS
4/0 Driver 16-TSSOP
