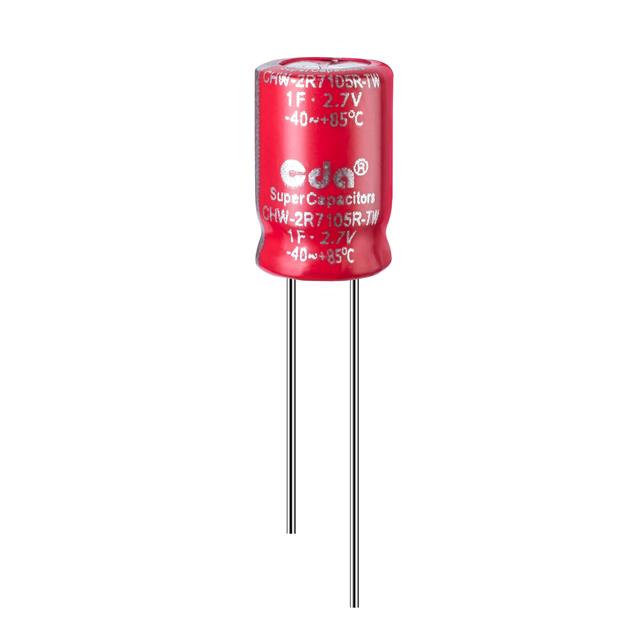

CHW-2R7105R-TW
ActiveZhi Feng Wei Technology
8*12 2.7V 1.0F EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHW-2R7105R-TW
ActiveZhi Feng Wei Technology
8*12 2.7V 1.0F EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CHW-2R7105R-TW |
|---|---|
| Capacitance | 1 F |
| ESR (Equivalent Series Resistance) | 160 mOhm |
| Height - Seated (Max) [Max] [z] | 12 mm |
| Height - Seated (Max) [Max] [z] | 0.472 " |
| Lead Spacing | 3.5 mm |
| Lead Spacing | 0.138 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.315 " |
| Size / Dimension [diameter] | 8 mm |
| Termination | PC Pins |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.75 | |
| 10 | $ 1.79 | |||
| 50 | $ 1.41 | |||
| 100 | $ 1.28 | |||
| 500 | $ 1.08 | |||
| 1000 | $ 1.01 | |||
| 2500 | $ 0.94 | |||
| 5000 | $ 0.90 | |||
Description
General part information
CHW-2R7105R-TW
1 F (EDLC) Supercapacitor 2.7 V Radial, Can 160mOhm @ 1kHz 1000 Hrs @ 85°C
