Technical Specifications
Parameters and characteristics for this part
| Specification | XXS30B4PM12 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | 5-Wire, PNP-NC/NO |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance | 157.48 in |
| Sensing Distance | 4 m |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 365.84 | |
Description
General part information

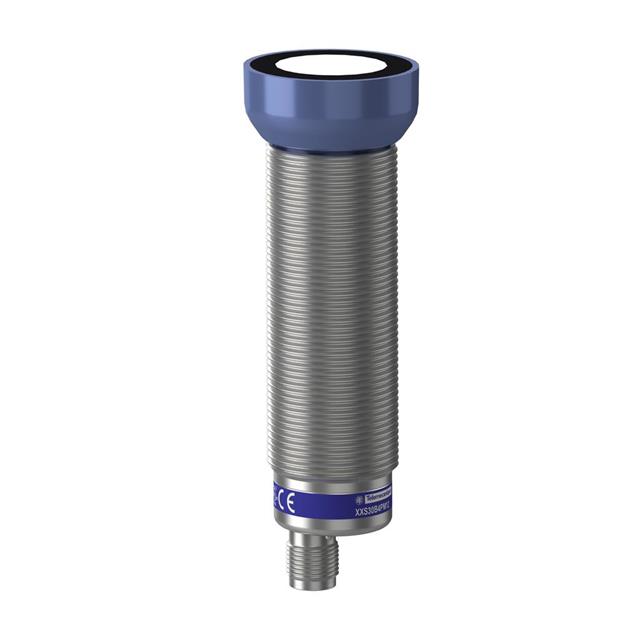

XXS30B4PM12
Ultrasonic Proximity Sensor 157.480" (4m) IP65, IP67 Cylinder, Threaded - M30
