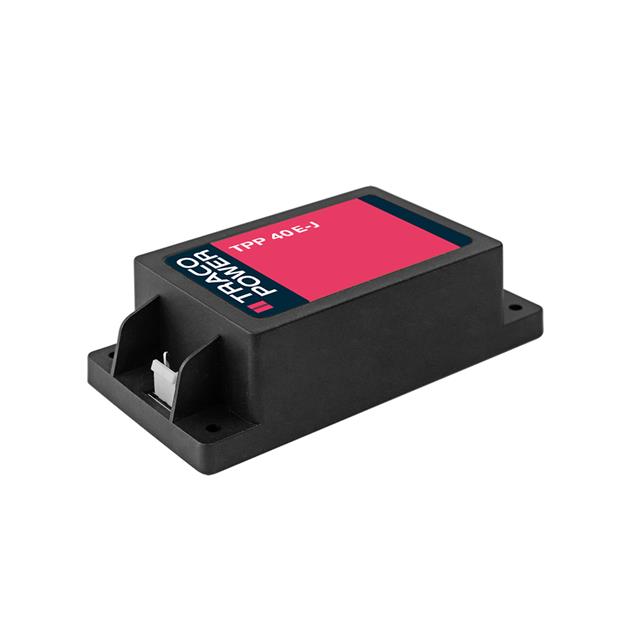

TPP 40-115E-J
ActiveTraco Power
AC/DC CONVERTER 15V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPP 40-115E-J
ActiveTraco Power
AC/DC CONVERTER 15V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPP 40-115E-J |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, CE, CB, UKCA, CSA |
| Current - Output 1 | 2.67 A |
| Efficiency | 92 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 109.2 mm |
| Size / Dimension [x] | 4.3 in |
| Size / Dimension [y] | 55.9 mm |
| Size / Dimension [y] | 2.2 in |
| Size / Dimension [z] | 1.2 " |
| Size / Dimension [z] | 30.5 mm |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 240 VAC, 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 100 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 72.11 | |
| 10 | $ 67.74 | |||
| 25 | $ 65.55 | |||
| 50 | $ 63.37 | |||
| 100 | $ 61.18 | |||
| 250 | $ 54.09 | |||
Description
General part information
TPP 40-115E-J
Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC Input
