IB818F-335
ActiveiBASE Technology
3.5" INTEL CELERON N3350 DC SOC
Deep-Dive with AI
Search across all available documentation for this part.
IB818F-335
ActiveiBASE Technology
3.5" INTEL CELERON N3350 DC SOC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IB818F-335 |
|---|---|
| Core Processor | Intel Celeron N3350 |
| Ethernet | GbE (2) |
| Expansion Site/Bus | Mini-PCIe |
| Form Factor | 3.5 in |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed [custom] | 8 GB |
| RAM Capacity/Installed [custom] | 0 GB |
| RS-232 (422, 485) | 4 |
| Size / Dimension [x] | 102.1 mm |
| Size / Dimension [x] | 4.02 in |
| Size / Dimension [y] | 5.79 in |
| Size / Dimension [y] | 147.06 mm |
| Speed | 2.4 GHz |
| Speed | 1.1 GHz |
| Storage Interface | mSATA, SATA III |
| USB | USB 3.0 (4), USB 2.0 (2) |
| Video Outputs | HDMI, Display Port, eDP, VGA, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IB818F-335

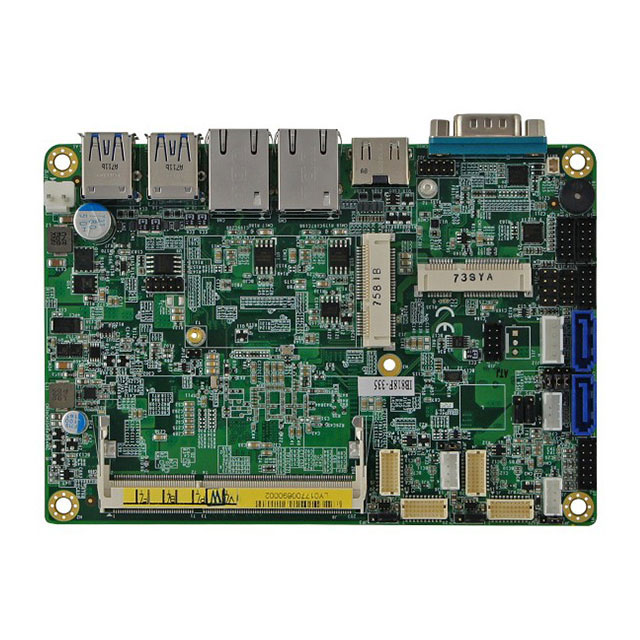

Single Board Computer 1.1GHz, 2.4GHz 1 Core 8GB/0GB RAM Intel Celeron N3350
Documents
Technical documentation and resources
No documents available
