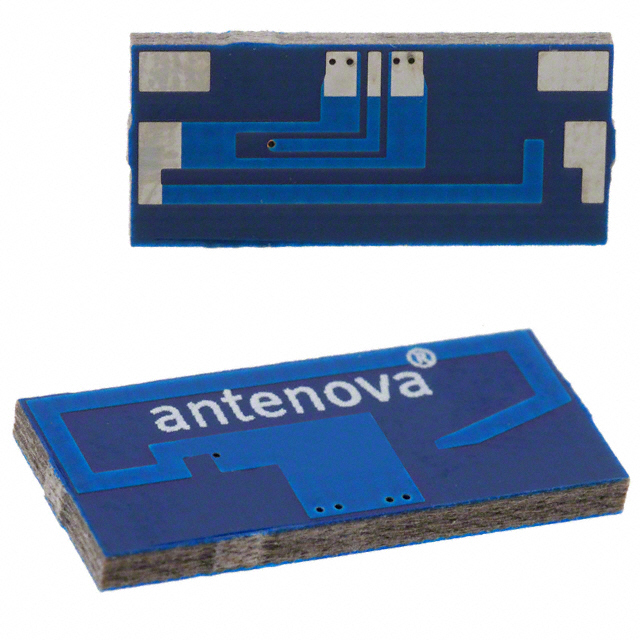

A10137
ObsoleteAntenova
RF ANT 1.575GHZ PCB TRACE SLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A10137
ObsoleteAntenova
RF ANT 1.575GHZ PCB TRACE SLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A10137 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Height (Max) [Max] | 0.063 in |
| Height (Max) [Max] | 1.6 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
A10137
RF ANTENNA GPS PCB Trace Solder Surface Mount
Documents
Technical documentation and resources
