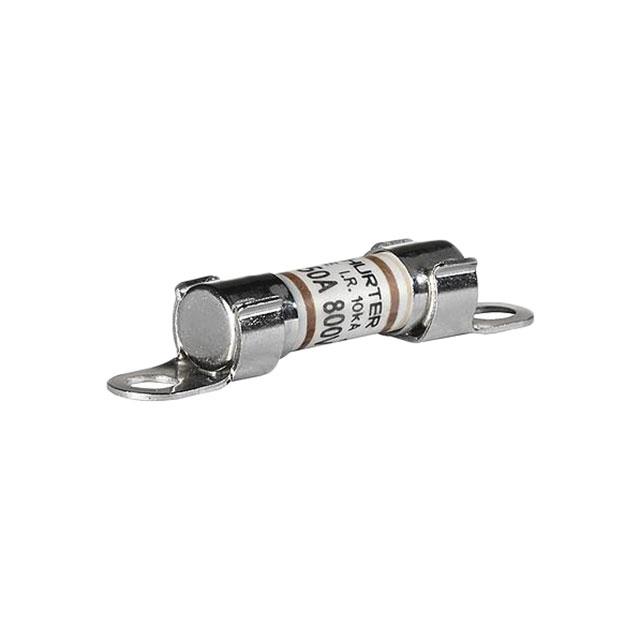

8020.2065 - MFG_AEO_boltmount

8020.2065

Active
SCHURTER Inc.

FUSE CARTRIDGE 50A 275VAC/800VDC

Deep-Dive with AI

Search across all available documentation for this part.

8020.2065 - MFG_AEO_boltmount

8020.2065

Active
SCHURTER Inc.

FUSE CARTRIDGE 50A 275VAC/800VDC

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification8020.2065
ApplicationsAutomotive
Approval AgencyCE, cURus
Breaking Capacity @ Rated Voltage20 kA, 10 kA
Current Rating (Amps)50 A
Fuse TypeCartridge
GradeAutomotive
Melting I²t11417
Mounting TypeBolt Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseCylindrical, Blade Terminal (Bolt)
QualificationAEC-Q200
Response TimeSlow Blow
Size / Dimension [diameter]0.469 in
Size / Dimension [diameter]11.9 mm
Size / Dimension [z]38 mm
Size / Dimension [z]1.496 in
Voltage Rating - AC275 VAC
Voltage Rating - DC800 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

8020.2065

50A 275 VAC 800 VDC Fuse Cartridge Bolt Mount
