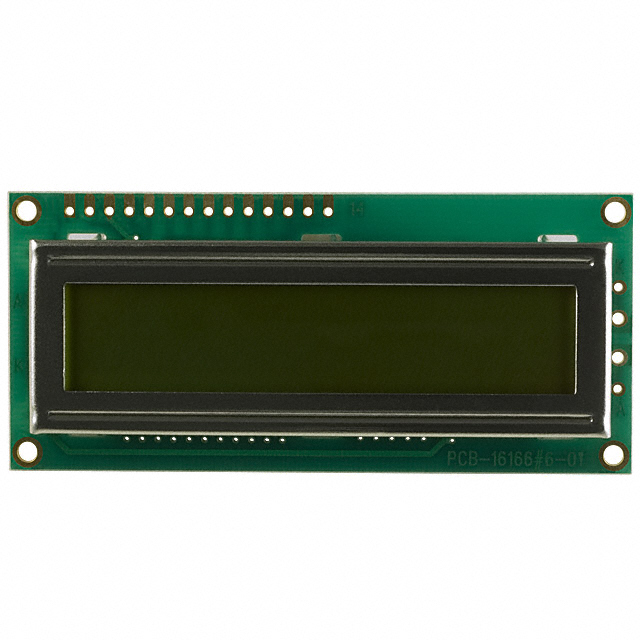

MDLS-16166-SS-LV-G
ObsoleteVaritronix
LCD MOD 16 DIG 16 X 1 REFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
MDLS-16166-SS-LV-G
ObsoleteVaritronix
LCD MOD 16 DIG 16 X 1 REFLECTIVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDLS-16166-SS-LV-G |
|---|---|
| Backlight | Without Backlight |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [custom] | 3.15 mm |
| Character Size [custom] | 6.3 mm |
| Display Format [x] | 16 |
| Display Format [y] | 1 |
| Display Mode | Reflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.7 mm |
| Interface | Parallel |
| Number of Characters | 16 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -5 °C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 6.8 mm |
| Viewing Area [x] | 64.5 mm |
| Viewing Area [y] | 13.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MDLS-16166-SS-LV-G
Character Display Module Reflective 5 x 8 Dots STN - Super-Twisted Nematic Without Backlight Parallel 80.00mm x 36.00mm x 6.80mm
