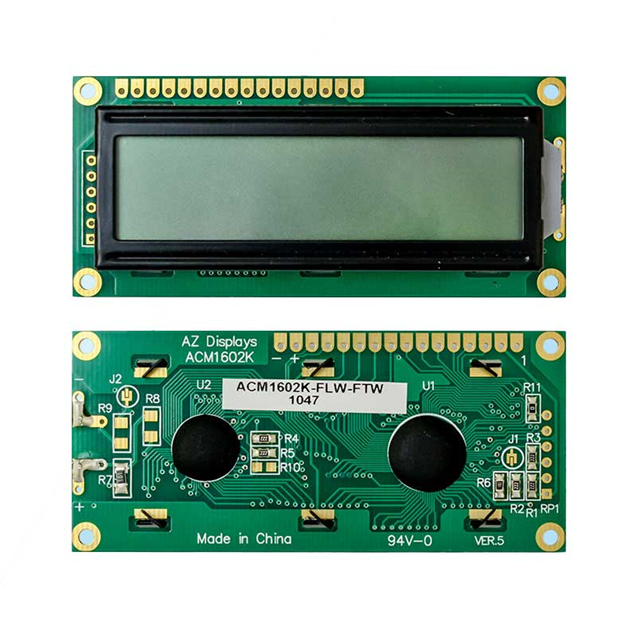

ACM1602K-FL-YBH
ActiveAZ Displays
16X2 CHARACTER LCD TRANSFLECTIVE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACM1602K-FL-YBH
ActiveAZ Displays
16X2 CHARACTER LCD TRANSFLECTIVE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACM1602K-FL-YBH |
|---|---|
| Backlight | LED |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [x] | 3 mm |
| Character Size [y] | 5.23 mm |
| Controller Type | SPLC780D1 |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Dot Size [x] | 0.56 mm |
| Dot Size [y] | 0.61 mm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 80 mm |
| Outline L x W x H [y] | 36 mm |
| Outline L x W x H [z] | 13.5 mm |
| Viewing Area [x] | 64.5 mm |
| Viewing Area [y] | 16.4 mm |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | Piece | 1 | $ 13.10 | |
| 200 | $ 5.23 | |||
| 500 | $ 5.05 | |||
| 1000 | $ 4.97 | |||
Description
General part information
ACM1602K-FL-YBH
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic, TN - Twisted Nematic LED 80.00mm x 36.00mm x 13.50mm
Documents
Technical documentation and resources
