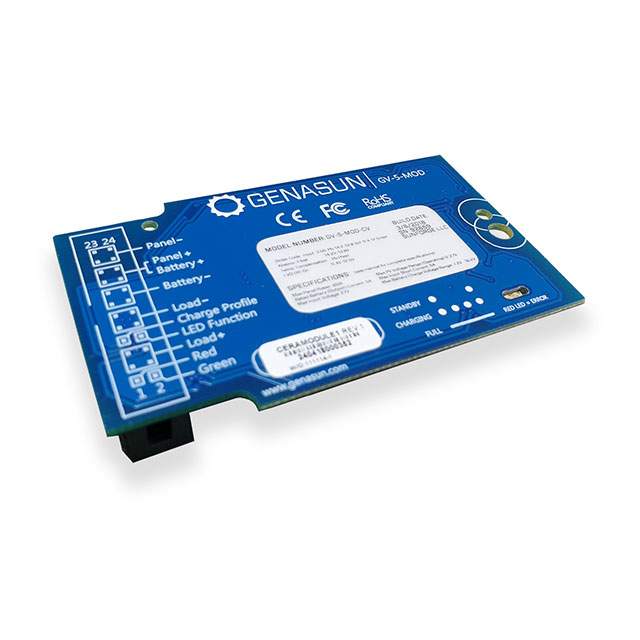

GV-5-MOD-PB MPPT
ActiveGenasun
BATT CHARGER SOLAR 12V 5A
Deep-Dive with AI
DocumentsGV-5-MOD Specification
Technical Specifications
Parameters and characteristics for this part
| Specification | GV-5-MOD-PB MPPT |
|---|---|
| Battery Chemistry | Lead Acid |
| Charge Current - Max | 5 A |
| Features | Dual firmware selectable for GEL/SLA or AGM/FLOODED |
| Features | 5 A |
| Mounting Type | Custom |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Max [Max] | 65 W |
| Size / Dimension [x] | 3.28 in |
| Size / Dimension [x] | 83.2 mm |
| Size / Dimension [y] | 1.88 " |
| Size / Dimension [y] | 47.8 mm |
| Size / Dimension [z] | 12.2 mm |
| Size / Dimension [z] | 0.48 in |
| Termination Style | Rectangular Connector |
| Type | Solar Charger |
| Voltage - Input [Max] | 27 V |
| Voltage - Input [Min] | 0 V |
| Voltage - Nominal | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 80.00 | |
| 50 | $ 68.00 | |||
Description
General part information
GV-5-MOD-PB MPPT
Solar Charger Battery Charger 12V 5A
