SMA-LLPSAJ-26-SMA-36
ActiveDVTEST

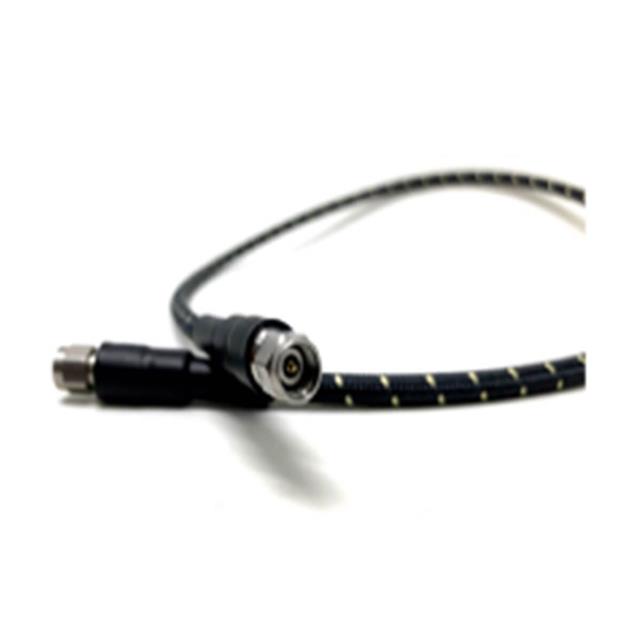

CBL ASSY SMA PLUG TO PLUG 36"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMA-LLPSAJ-26-SMA-36
ActiveDVTEST
CBL ASSY SMA PLUG TO PLUG 36"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMA-LLPSAJ-26-SMA-36 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Color | White, Black |
| Features | Low Loss Shielded |
| Frequency - Max [Max] | 26.5 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -45 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 270.00 | |
| 5 | $ 260.00 | |||
| 10 | $ 255.00 | |||
| 25 | $ 245.00 | |||
Description
General part information
SMA-LLPSAJ-26-SMA-36
Cable Assembly Coaxial SMA to SMA 36.00" (914.40mm)
Documents
Technical documentation and resources
