Q1553-84
ActiveiNRCORE, LLC
TRANSFORMER PBC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q1553-84 |
|---|---|
| Height - Seated (Max) | 6.35 mm |
| Height - Seated (Max) [Max] | 0.25 in |
| Mounting Type | Through Hole |
| Size / Dimension [x] | 0.624 in |
| Size / Dimension [x] | 15.86 mm |
| Size / Dimension [y] | 15.86 mm |
| Size / Dimension [y] | 0.624 in |
| Transformer Type | MIL-STD-1553 |
| Turns Ratio - Primary:Secondary [custom] | 1.5 CT, 2.12 CT |
| Turns Ratio - Primary:Secondary [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 33 | $ 59.79 | |
Description
General part information
Q1553-84

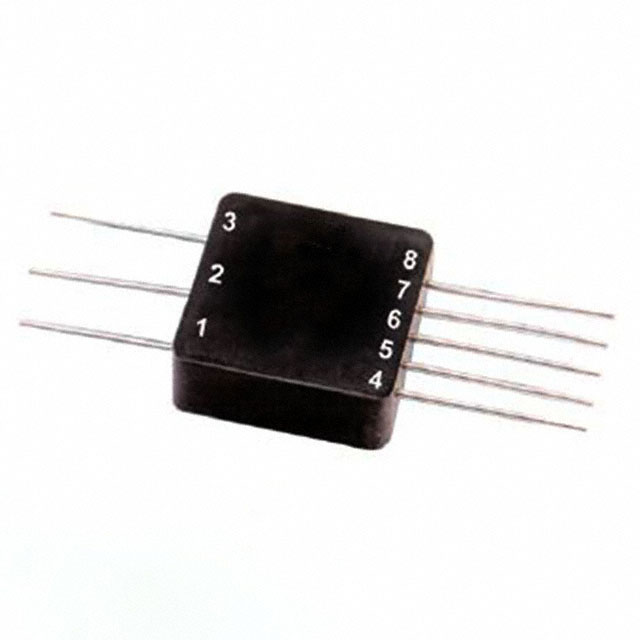

MIL-STD-1553 Pulse Transformer 1CT:2.12CT, 1CT:1.5CT Through Hole
