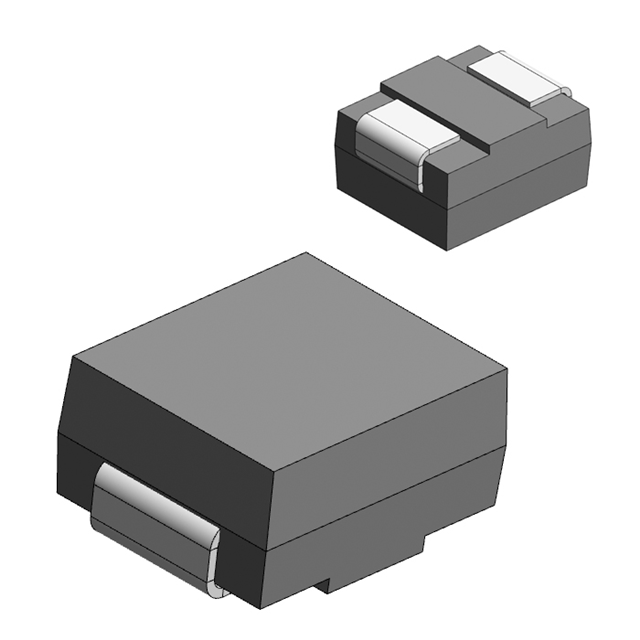

SMBJ51AH
ActiveEaton - Electronics Division
TVS DIODE 51VWM 82.4VC DO214AA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMBJ51AH
ActiveEaton - Electronics Division
TVS DIODE 51VWM 82.4VC DO214AA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMBJ51AH |
|---|---|
| Applications | Telecom |
| Current - Peak Pulse (10/1000µs) | 7.3 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SMB, DO-214AA |
| Power - Peak Pulse | 600 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AA (SMBJ) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Clamping (Max) @ Ipp | 82.4 V |
| Voltage - Reverse Standoff (Typ) | 51 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.29 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 9000 | $ 0.10 | |||
| 15000 | $ 0.09 | |||
| 21000 | $ 0.09 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.08 | |||
Description
General part information
SMBJ51AH
82.4V Clamp 7.3A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ)
