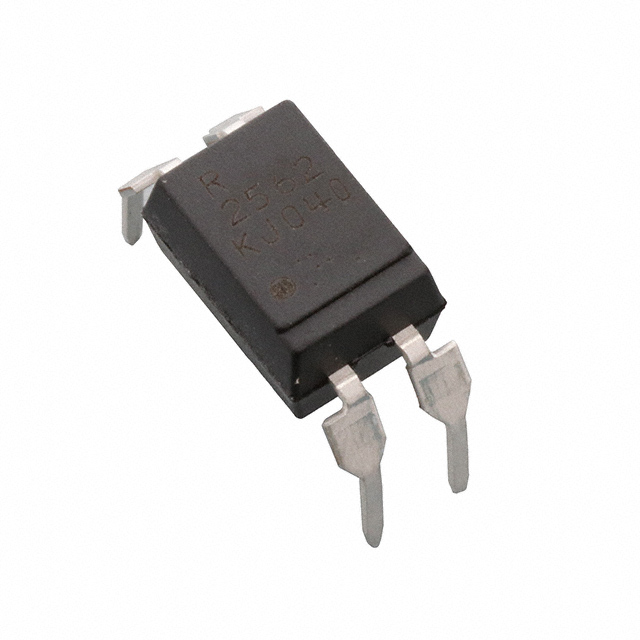

PS2561DL1-1Y-L-A
UnknownCEL
OPTOISOLATOR 5KV TRANS 4DIP
Deep-Dive with AI
Search across all available documentation for this part.
PS2561DL1-1Y-L-A
UnknownCEL
OPTOISOLATOR 5KV TRANS 4DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PS2561DL1-1Y-L-A |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 40 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) | 400 % |
| Current Transfer Ratio (Min) [Min] | 200 % |
| Input Type | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | 1.81 mOhm |
| Package / Case | 4-DIP |
| Rise / Fall Time (Typ) [custom] | 5 µs |
| Rise / Fall Time (Typ) [custom] | 3 µs |
| Supplier Device Package | 4-DIP |
| Vce Saturation (Max) [Max] | 300 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 800 | $ 0.18 | |
Description
General part information
PS2561DL1-1Y-L-A
Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
